BA/10K-3-A-12' | BAPI | Temperature Sensors & Transmitters

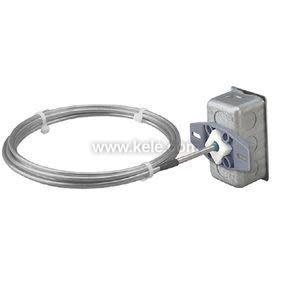

Averaging Temperature Sensor, 10K Type III Thermistor, 12' Flexible Probe, Junction Box
Brand:BAPI
MPN:BA/10K-3-A-12'
SKU:BA/10K3-A12-JB
List Price:
$301.27
Today's Price:
$156.66
product specifications
Accessory
CC-1G-K, M-633, M-648-K, DCPA-1.2, 691-K0A, DCP-1.5-W, UR, T81U-XR, T85U-XR, T91U-XR
Application
Duct Averaging Temperature
Averaging Type
Flexible
Housing
Junction Box
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
12 ft
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.36°F (0.2°C)
- RTD:
- ±0.55°F (±0.30°C)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III
- RTD:
- 100Ω,1000Ω, 385 curve; 1000Ω, 375 curve
- Temperature Range:
- 32° to 158‚Ñâ (-0° to 70‚ÑÉ°)
- Stability:
- < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
- Heat Dissipation:
- 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
- Enclosure Rating:
- NB:
- No box with 6‚Ä= leads
- JB:
- NEMA 1, 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts
- BB:
- NEMA 4, BAPI Box IP66 rated, NEMA 4 UV-resistant polycarbonate
- BB2:
- NEMA 4, BAPI Box 2 IP66 rated, NEMA 4 UV-resistant polycarbonate
- BB4:
- NEMA 3R, BAPI Box 4 IP44 Nylon & Plastic
- WP:
- NEMA 3R cast aluminum
- Mounting:
- Directly to Duct, with clips to mount coil
- Wiring Terminations:
- 22 AWG wire, etched teflon leads
- Weight:
- 1 to 2 lbs (Varies with probe length)
- Approvals:
- CE, RoHS
- Warranty:
- Lifetime
product series features
- Flexible averaging lengths: 8 ft (2.4m), 12 ft (3.7m) and 24 ft (7.3m)
- Several enclosure styles with mounting tabs for easy installation
- Limited lifetime warranty
more information & related documents
Series Description
The BAPI BA Series Averaging Thermistor and RTD Sensors are availible in a variety of easy to mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires. Flexible probes are made of bendable aluminum while the rigid probes are made of stainless steel.
Kele Description
TEMP SENSOR, AVG, FLEXIBLE, 10K TYPE III, 12.00' PROBE, METALLIC ENCL
Manufacturer
BAPI
