BA/10K-2-A-12' | BAPI | Temperature Sensors & Transmitters

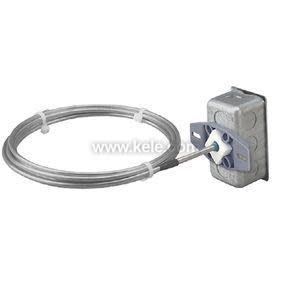

Averaging Temperature Sensor, 10K Type II Thermistor, 12' Flexible Probe, Junction Box

Brand:BAPI

MPN:BA/10K-2-A-12'

SKU:BA/10K2-A12-JB

List Price:

$301.27

Today's Price:

$156.66



Availability: 2 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

CC-1G-K, M-633, M-648-K, DCPA-1.2, 691-K0A, DCP-1.5-W, UR, T81U-XR, T85U-XR, T91U-XR

Application

Duct Averaging Temperature

Averaging Type

Flexible

Housing

Junction Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

12 ft

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36°F (0.2°C)
    RTD:
  • ±0.55°F (±0.30°C)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100‚Ѷ,1000‚Ѷ, 385 curve; 1000‚Ѷ, 375 curve
    Temperature Range:
  • 32° to 158‚Ñâ (-0° to 70‚ÑÉ°)
    Stability:
  • < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
    Enclosure Rating:
    NB:
  • No box with 6‚Ä= leads
    JB:
  • NEMA 1, 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts
    BB:
  • NEMA 4, BAPI Box IP66 rated, NEMA 4 UV-resistant polycarbonate
    BB2:
  • NEMA 4, BAPI Box 2 IP66 rated, NEMA 4 UV-resistant polycarbonate
    BB4:
  • NEMA 3R, BAPI Box 4 IP44 Nylon & Plastic
    WP:
  • NEMA 3R cast aluminum
    Mounting:
  • Directly to Duct, with clips to mount coil
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Weight:
  • 1 to 2 lbs (Varies with probe length)
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Flexible averaging lengths: 8 ft (2.4m), 12 ft (3.7m) and 24 ft (7.3m)
  • Several enclosure styles with mounting tabs for easy installation
  • Limited lifetime warranty

more information & related documents

Series Description

The BAPI BA Series Averaging Thermistor and RTD Sensors are availible in a variety of easy to mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires. Flexible probes are made of bendable aluminum while the rigid probes are made of stainless steel.

Kele Description

TEMP SENSOR, AVG, FLEXIBLE, 10K TYPE II, 12.00' PROBE, METALLIC ENCL

Manufacturer

BAPI
