A/AN-FA-24'-GD | ACI | Temperature Sensors & Transmitters

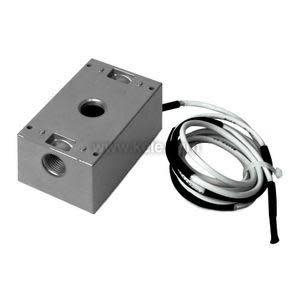

Averaging Temperature Sensor, 10K Type III Thermistor, Flexible Cable Averaging, 24' Probe, Galvanized Enclosure
Brand:ACI
MPN:A/AN-FA-24'-GD
SKU:A/ANFA24GD
List Price:
$274.60
Today's Price:
$142.79
product specifications
Accessory
TT100-0100-BO-1, TT100-0100-BO-2, TT100-0100-BO-4, TT1K-0100-BO-1, TT1K-0100-BO-2, TT1K-0100-BO-4, UR, F-1000-331, CC-1G-K, M-633, M-648-K, DCPA-1.2, 691-K0A, DCP-1.5-W
Application
Duct Averaging Temperature
Averaging Type
Flexible
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
24 ft
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- ±0.5‚Ñâ (0.28‚ÑÉ)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III, 20 kΩ, 100 kΩ
- RTD:
- 100Ω, 1000Ω 385 curve
- Temperature Range:
- -40° to302‚Ñâ (-40° to 150‚ÑÉ)
- Stability:
- Thermistor:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- Heat Dissipation:
- Thermistor, 3 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Enclosure Rating:
- NEMA 1, Galvanized metal box
- Wiring Terminations:
- 10" of 22 AWG wire or terminal strip
- Weight:
- 12':
- 1.2 lb (0.54 Kg)
- 24':
- 2.12 lb (0.96 Kg)
- Approvals:
- RoHs
- Warranty:
- 5 years
product series features
- Lengths of 12 ft (3.7 m) or 24 ft (7.3 m)
- Five-year warranty
- Bendable copper
more information & related documents
Series Description
The ACI Series Averaging Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The averaging sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Averaging sensors come with a foambacked handy box and in 12 ft (3.7m) or 24 ft (7.3) lengths. The ACI Averaging Sensor should be mounted across a duct in a serpentine fashion with bends in a smooth ark using an M-648-K or CC-1G-K clip. The RTD probe is sensitive for the entire length, while the thermistor is sensitive at nine evenly spaced sensor locations. Use standard metal screws to secure to the duct.
Kele Description
TEMP SENSOR, AVG, FLEXIBLE, 10K TYPE III, 24.00' PROBE, METALLIC ENCL
Manufacturer
ACI
