A/1K-2W-A-24'-4X | ACI | Temperature Sensors & Transmitters

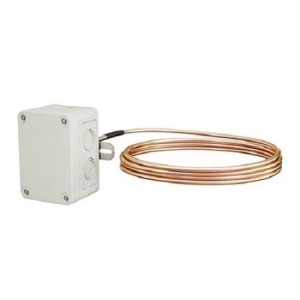

Averaging Temperature Sensor, 1,000 Ω RTD (2-wire), Copper Averaging, 24' Probe, NEMA 4X Enclosure

Brand:ACI

MPN:A/1K-2W-A-24'-4X

SKU:A/1K2WA244X

List Price:

$376.00

Today's Price:

$195.52



Availability: Usually Ships in Less Than 11 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Accessory

TT100-0100-BO-1, TT100-0100-BO-2, TT100-0100-BO-4, TT1K-0100-BO-1, TT1K-0100-BO-2, TT1K-0100-BO-4, UR, F-1000-331, CC-1G-K, M-633, M-648-K, DCPA-1.2, 691-K0A, DCP-1.5-W

Application

Duct Averaging Temperature

Averaging Type

Flexible

Housing Material

Poly

Housing Rating

NEMA 4X

Output

Resistance

Probe Length

24 ft

Sensor Element

1K Platinum RTD 385

Type

RTD

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.5‚Ñâ (0.28‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
  • 100‚Ѷ, 1000‚Ѷ 385 curve
    Temperature Range:
  • -40° to302‚Ñâ (-40° to 150‚ÑÉ)
    Stability:
    Thermistor:
  • 0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
    Heat Dissipation:
  • Thermistor, 3 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
  • NEMA 1, Galvanized metal box
    Wiring Terminations:
  • 10" of 22 AWG wire or terminal strip
    Weight:
    12':
  • 1.2 lb (0.54 Kg)
    24':
  • 2.12 lb (0.96 Kg)
    Approvals:
  • RoHs
    Warranty:
  • 5 years

product series features

  • Lengths of 12 ft (3.7 m) or 24 ft (7.3 m)
  • Five-year warranty
  • Bendable copper

more information & related documents

Series Description

The ACI Series Averaging Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The averaging sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Averaging sensors come with a foambacked handy box and in 12 ft (3.7m) or 24 ft (7.3) lengths. The ACI Averaging Sensor should be mounted across a duct in a serpentine fashion with bends in a smooth ark using an M-648-K or CC-1G-K clip. The RTD probe is sensitive for the entire length, while the thermistor is sensitive at nine evenly spaced sensor locations. Use standard metal screws to secure to the duct.

Kele Description

TEMP SENSOR, AVG, FLEXIBLE, 1K RTD 385, 24.00' PROBE, POLY ENCL
