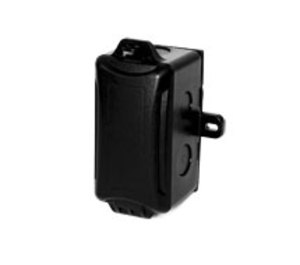

A/20K-INW-2.5-GD | ACI | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.50°F (0.28°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III, 20 kΩ

RTD: 100Ω, 1000Ω 385 curve

Temperature Range: -40° to 275°F (-40° to 135°C)

Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: <±0.1°C drift

Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Measurement Range: -40° to 302°F (-40° to 150°C)

Enclosure Rating: NEMA 1, Plastic Box

Wiring Terminations: 10 pairs of 22 AWG wire

Probe: Seamless Stainless steel tube, 1/4" (0.64 cm) O.D.

Dimensions: less probe 4.5"W x 2.3"H x 2.3"D (11.4 x 5.8 x 5.8 cm)

Weight: Duct: 0.72 lb (0.32 Kg)

Immersion: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS

Warranty: 5 years
