E55S-E21BC | United Electric | Temperature Instruments

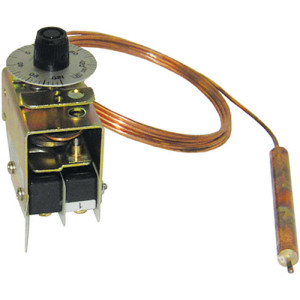

SKEL BULB CAP TEMP SW, ADJ, 0° TO 150° F, SPDT
Brand:United Electric
MPN:E55S-E21BC
SKU:E55S-E21BC
List Price:
$596.15
Today's Price:
$310.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Skeleton Construction
Sensor Type
Bulb and Capillary
Temperature Range
0 to 150 °F
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
SKEL
Process Variable
Temperature
Capillary
6 Ft Copper Capillary
Contact Type
SPDT
Switch Rating
15A @ 125/250/480 VAC
Deadband
1% Range
Temp Sensor Dims
3/8" OD Bulb x 7" Len
Adjustments
External Adjustment with Reference Dial
Approvals
CE,cULus,cURus
Wetted Materials
Copper Bulb and Capillary
Max Temperature
200 °F
product series features
- Single or dual 15A SPDT switch output, wired normally open or normally closed
- Copper or stainless steel bulb and capillary
- Adjustable temperature ranges from -130° to 650° F
- NEMA 4X aluminum enclosure or skeleton construction, both with external dial for easy adjustment
- Setpoint repeatability: ±1% adjustable range
- Panel or surface mount for hassle-free installation
- cULus listed, cURus recognized, CE compliant
more information & related documents
Series Description
Compact temperature switches for food service, oven control, and heat trace applications. Single or dual SPDT switch output, external adjustment, reference dial, NEMA4X enclosure or skeleton construction, copper or stainless steel bulb and capillary. cULus listed, cURus recognized, CE compliant.
Kele Description
SKEL BULB CAP TEMP SW, ADJ, 0° TO 150° F, SPDT
Manufacturer
United Electric
Related Documents
UE-IM55-06-2011-07
