E54-D23BC | United Electric | Temperature Instruments

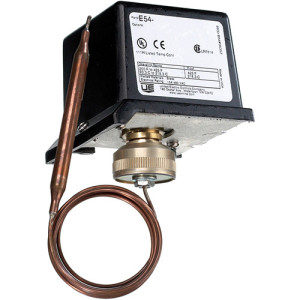

NEMA 1 BULB CAP TEMP SW, ADJ, 150° TO 650° F, SPDT
Brand:United Electric
MPN:E54-D23BC
SKU:E54-D23BC
List Price:
$607.69
Today's Price:
$316.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Black-Finished Lexan Enclosure
Sensor Type
Bulb and Capillary
Temperature Range
150 to 650 °F
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
NEMA 1
Process Variable
Temperature
Capillary
6 Ft Copper Capillary
Contact Type
SPDT
Switch Rating
15A @ 125/250/480 VAC
Deadband
1% Range
Temp Sensor Dims
3/8" OD Bulb x 3-3/4" Len
Adjustments
Internal Adjustment with Reference Dial
Approvals
CE,cUL,cURus
Electrical Connection
7/8" Diam Hole
Wetted Materials
Copper Bulb and Capillary
Max Temperature
700 °F
product series features
- Single or dual SPDT or switch outputs
- Adjustable pressure setpoint ranges from 30" HgVac to 6000 PSI
- Adjustable temperature setpoint ranges from -130° to 650° F (-90° to 343.3° C)
- Repeatability to ±1% full scale range
- Easy setting by reference dial or hex screw adjustment
- Brass or aluminum threaded pressure connections
- Adjustable or narrow deadband for improved accuracy
- NEMA 1 polycarbonate enclosure or open frame (skeleton) construction
- cUL, cULus listed, cURus recognized, CE compliant
more information & related documents
Series Description
Cost-effective pressure and temperature switches for OEM applications. Single or dual SPDT switch outputs, reference dial or hex adjustment, NEMA 1 enclosure or open frame skeleton construction. cUL, cULus listed, cURus recognized, CE compliant.
Kele Description
NEMA 1 BULB CAP TEMP SW, ADJ, 150° TO 650° F, SPDT
Manufacturer
United Electric
Related Documents
UE-ds-54-B-07-2019-06
