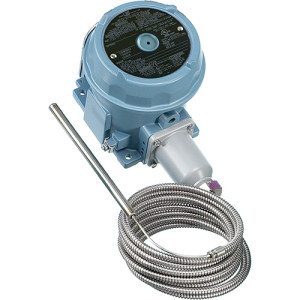

E121-2BSB/10S-10S | United Electric | Temperature Instruments
NEMA 4X BULB CAP TEMP SW, ADJ, 30° TO 250° F, SPDT
Brand:United Electric
MPN:E121-2BSB/10S-10S
SKU:E121-2BSB/10S-10S
List Price:
$1,705.77
Today's Price:
$887.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Epoxy-Coated Diecast Aluminum, Gasketed Enclosure
Sensor Type
Bulb and Capillary
Temperature Range
30° to 250 °F
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
2%
Enclosure Rating
NEMA 4X,NEMA 7,NEMA 9,IP66
Process Variable
Temperature
Capillary
10 Ft SS Capillary with SS Armor
Contact Type
SPDT
Switch Rating
15A @ 125/250/480 VAC
Deadband
2% Range
Temp Sensor Dims
3/8" OD Bulb x 2-5/8" Len
Adjustments
External Adjustment with Reference Dial
Approvals
CE,UL,IECEx
Electrical Connection
3/4" NPT w/ Terminal Block
Wetted Materials
304 SS Bulb, SS Armored Capillary
Max Temperature
300 °F
product series features
- Pressure ranges from 30" HgVac to 6000 PSI, differential pressure ranges from 30" Hg to 1000 PSI, temperature ranges from -180° to 650°F
- One or two SPDT outputs standard, optional DPDT or hermetic seal switch outputs available
- Easy-access terminal block to simplify wiring
- NEMA 4X epoxy-coated cast aluminum enclosure
- UL approvals for Class I, Divisions 1 and 2 environments, ATEX approved, CE compliant
- EXIDA Certified for use in SIL 2 functional safety systems, (SIL 3 capable)
more information & related documents
Series Description
Rugged pressure, differential pressure and temperature switches for Div 1 and Div 2 hazardous environments. Single SPDT or dual SPDT switch output, internal adjustment, or external adjustment with reference scale or dial, NEMA 4X enclosure, sensor materials to meet media and environmental requirements, UL, ATEX, NACE approved, CE compliant, SIL 2 Certified, SIL 3 capable
Kele Description
NEMA 4X BULB CAP TEMP SW, ADJ, 30° TO 250° F, SPDT
Manufacturer
United Electric
UE-IMT120-16-2023-12
