E100-3BS | United Electric | Temperature Instruments

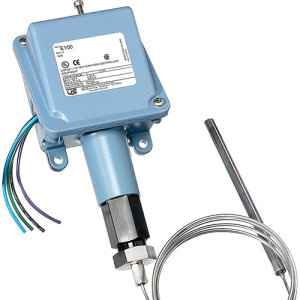

NEMA 4X BULB CAP TEMP SW, ADJ, 100° TO 400° F, SPDT
Brand:United Electric
MPN:E100-3BS
SKU:E100-3BS
List Price:
$834.62
Today's Price:
$434.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Epoxy-Coated Diecast Aluminum, Gasketed Enclosure
Sensor Type
Bulb and Capillary
Temperature Range
100 to 400 °F
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC,2A Resistive, 1A Inductive @ 24-30 VDC,0.5A Resistive, 0.03A Inductive @ 125 VDC
Repeatability
1%
Enclosure Rating
NEMA 4X
Process Variable
Temperature
Capillary
6 Ft 304 SS Capillary
Contact Type
SPDT
Switch Rating
15A @ 125/250/480 VAC
Deadband
2% Range
Temp Sensor Dims
3/8" OD Bulb x 2-1/8" Len
Adjustments
Internal Adjustment with Reference Dial
Approvals
CE,UL,cUL
Electrical Connection
1/2" NPTF, (2) 7/8" Diam Knockouts
Wetted Materials
304 SS Bulb, SS Capillary
Max Temperature
450 °F
product series features
- NEMA 4X epoxy-coated diecast aluminum enclosure
- Single SPDT snap-action switch output standard (DPDT optional)
- 1/8", 1/4", or 1/2" NPTF process connections
- Adjustable setpoint ranges: 0.2" WC to 500 PSID differential pressure, 300" WC Vac to 5000 PSI pressure, and -180° to 650° F (-117.8° to 343.3° C) temperature
- Tamper-resistant setpoint lock standard
- Internal adjustment standard, some models include reference scale or dial
- Setpoint repeatability of ±1% to ±1.5% adjustable range, depending on model
- UL Listed, cUL certified, ATEX approved, CE compliant, some models NACE MR0175 compliant
- EXIDA Certified for use in SIL 2 functional safety systems, SIL3 capable
more information & related documents
Series Description
<p>UE's 100 Series is a cost-effective pressure and temperature switch for use in process plants. UE 100 models are used in heat tracing, freeze protection, pumps, compressors, fire suppression systems, and as inputs for annunciator panels. The rugged NEMA 4X one-piece enclosure features a clamshell design slanted cover for easy access to the wiring terminal block. The wide variety of materials, microswitch, and process connection options make this SIL-certified switch a great fit for applications that require a weatherproof device.</p>
Kele Description
NEMA 4X BULB CAP TEMP SW, ADJ, 100° TO 400° F, SPDT
Manufacturer
United Electric
UE-IMP100-14-2025-02
