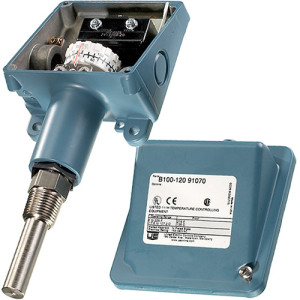

B100-120/0140 | United Electric | Temperature Instruments
NEMA 4X IMMERS STEM TEMP SW, ADJ, 0° TO 225° F, SPDT
Brand:United Electric
MPN:B100-120/0140
SKU:B100-120/0140
List Price:
$776.92
Today's Price:
$404.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Epoxy-Coated Diecast Aluminum, Gasketed Enclosure
Sensor Type
Immersion Stem
Temperature Range
0 to 250 °F
Switch Output
SPDT
Contact Rating
1A @ 125 VAC
Repeatability
1%
Enclosure Rating
NEMA 4X
Process Variable
Temperature
Contact Type
SPDT
Switch Rating
1A @ 125 VAC
Deadband
2% Range
Temp Sensor Dims
9/16" OD Stem x 1-7/8" BT
Adjustments
Internal Adjustment with Reference Dial
Approvals
CE,UL,cUL
Electrical Connection
1/2" NPTF, (2) 7/8" Diam Knockouts
Wetted Materials
Nickel-Plated Brass Immersion Stem
Max Temperature
275 °F
product series features
- NEMA 4X epoxy-coated diecast aluminum enclosure
- Single SPDT snap-action switch output standard (DPDT optional)
- 1/8", 1/4", or 1/2" NPTF process connections
- Adjustable setpoint ranges: 0.2" WC to 500 PSID differential pressure, 300" WC Vac to 5000 PSI pressure, and -180° to 650° F (-117.8° to 343.3° C) temperature
- Tamper-resistant setpoint lock standard
- Internal adjustment standard, some models include reference scale or dial
- Setpoint repeatability of ±1% to ±1.5% adjustable range, depending on model
- UL Listed, cUL certified, ATEX approved, CE compliant, some models NACE MR0175 compliant
- EXIDA Certified for use in SIL 2 functional safety systems, SIL3 capable
more information & related documents
Series Description
<p>UE's 100 Series is a cost-effective pressure and temperature switch for use in process plants. UE 100 models are used in heat tracing, freeze protection, pumps, compressors, fire suppression systems, and as inputs for annunciator panels. The rugged NEMA 4X one-piece enclosure features a clamshell design slanted cover for easy access to the wiring terminal block. The wide variety of materials, microswitch, and process connection options make this SIL-certified switch a great fit for applications that require a weatherproof device.</p>
Kele Description
NEMA 4X IMMERS STEM TEMP SW, ADJ, 0° TO 225° F, SPDT
Manufacturer
United Electric
UE-100-120-12-SIL-man-MECH-SM-02-2021-02
