802-7BS | United Electric | Temperature Instruments

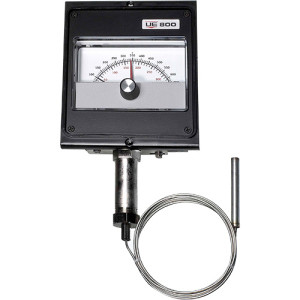

NEMA 1 BULB CAP TEMP SW, ADJ, 0° TO 400° F, 2 SPDT
Brand:United Electric
MPN:802-7BS
SKU:802-7BS
List Price:
$2,342.31
Today's Price:
$1,218.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Corrosion-Resistant Black Lexan Enclosure and Faceplate
Sensor Type
Bulb and Capillary
Temperature Range
0 to 400 °F
Switch Output
(2) SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
NEMA 1
Process Variable
Temperature
Switch Adjustment
Reference Scale/Dial
Capillary
6 Ft 304 SS Capillary
Contact Type
(2) SPDT
Switch Rating
15A @ 125/250/480 VAC
Deadband
1% Range
Temp Sensor Dims
3/8" OD Bulb x 3" Len
Adjustments
Dual External Dials with Reference Scale
Approvals
CE,UL,cUL
Electrical Connection
7/8" Diam Knockout, Left Side
Wetted Materials
304 SS Bulb, SS Capillary
Max Temperature
450 °F
product series features
- Indication and control switching for temperature ranges from -180° to 650°F (-118° to 343°C)
- Stainless steel bulb and capillary
- One or two SPDT switch outputs
- Easy adjustment via front-face knob; Dual switches have separate knobs and temperature pointers for each switch setpoint
- Choice of NEMA 1/4 corrosion-resistant Lexan enclosure and faceplate or NEMA 4X/7/9/IP66 epoxy-coated diecast aluminum enclosure with Lexan cover and faceplate
- Explosion-proof models (820E/822E) are UL listed, cUL certified, CE, ATEX compliant, for use in Class I, Div 1 and 2, Class II, Div 1 and 2, Class III, and Class I, Zone 1 areas
more information & related documents
Series Description
Temperature switches for general service or harsh environment applications. Single or dual SPDT switch output, external adjustment with front-face indicator knob(s), NEMA 1 faceplate or NEMA 4X/7/9/IP66 enclosure, stainless steel bulb and capillary, UL listed, cUL certified, CE, ATEX compliant
Kele Description
NEMA 1 BULB CAP TEMP SW, ADJ, 0° TO 400° F, 2 SPDT
Manufacturer
United Electric
Related Documents
UE-IM800-06-2012-05
