1XSWLLTL1 | United Electric | Temperature Instruments

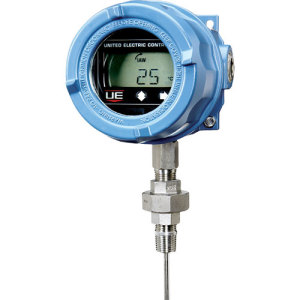

NEMA 4X/IP66 4" IMMERS STEM TEMP SW, ADJ -40° TO 450° F, 2-WIRE, SPST
Brand:United Electric
MPN:1XSWLLTL1
SKU:1XSWLLTL1
List Price:
$1,775.00
Today's Price:
$923.00
Log in for customized pricingproduct specifications
Measurement
°F
Housing Material
Epoxy-Coated Aluminum Alloy 360, Tempered Glass Window
Sensor Type
Immersion Stem
Temperature Range
-40 to 450 °F
Switch Output
2-WIRE, SPST
Contact Rating
7.8-50 VDC @ 0.1A MOSFET
Repeatability
0.10%
Enclosure Rating
NEMA 4X,IP66
Process Variable
Temperature
Contact Type
SPST
Switch Rating
7.8-50 VDC @ 0.1A MOSFET
Temp Sensor Dims
0.25" OD Immersion Stem, 4" Len
Adjustments
Keypad
Approvals
CE,UL,cUL,IECEx,SIL2,SIL3
Electrical Connection
(2) 3/4" NPT w/ Terminal Block
Wetted Materials
316 SS Sheathed RTD
Max Temperature
495 °F
product series features
- Switch only, transmitter only, or hybrid transmitter/switch models available
- Two switch-only models available: High voltage, low current for compatibility to worldwide DCS and PLC systems, and high voltage, high current for switching high level loads directly at the measurement point
- Solid state switch-only models replace mechanical switches for cost-effective upgrades using existing wiring
- NAMUR standard and HART® enabled transmitter; 4-20 mA output plus programmable switch for process monitoring, alarm, and shutdown
- Adjustable Ranges: Pressure -14.7 to 6000 PSI, Temperature -40° to 1000°F, Differential Pressure 0 to 200 PSID
- Configurable "I Am Working" self-diagnostics ensure the instrument is functioning properly
- Display and keypad provide easy, fast, secure field programming without taking the device out of service
- Programmable setpoint and deadband provide versatile, accurate, repeatable alarm and shutdown switching without "wet" calibrations on a pressure test stand
- All models UL, CSA approved for Class I Div 1, Class II Div 1, Class III, plus Class 2 Zone 1, and Class 1 Zone 2 environments
- One Series 1XSW switches are now certified SIL2/SIL3 capable for compliance with IEC functional safety requirements
more information & related documents
Series Description
Programmable solid state pressure, differential pressure, and temperature devices with local indication for general service, hazardous area, or harsh environment applications. 4-20 mA transmitter-only, switch-only, or hybrid transmitter-switch models, front-panel digital process display and keypad adjustment, adjustable differential, I Am Working self-diagnostics, NEMA 4X/IP66 epoxy-coated aluminum alloy 360 enclosure with tempered glass window, UL listed, CSA approved, cUL certified, CE compliant.
Kele Description
NEMA 4X/IP66 4" IMMERS STEM TEMP SW, ADJ -40° TO 450° F, 2-WIRE, SPST
Manufacturer
United Electric
