TR40VA001US | Functional Devices | Power Supplies

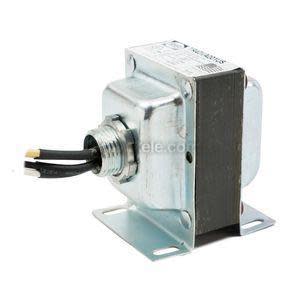

Transformer American-Made 40VA, 120 to 24 Vac, Foot and Single Threaded Hub Mount

Brand:Functional Devices

MPN:TR40VA001US

SKU:TR40VA001US

This product is retiring, try a replacement TR40VA001 TR50VA001US

List Price:

$-.--

Today's Price:

$-.--

product datasheet

catalog page

product specifications

VA Rating

40 VA

Termination

Leads

Type

Closed

Over Current Protection

Inherent

Primary Voltage

120 VAC

Secondary Voltage

24 VAC

Application

Power Controller,Powering Sensors,Driving Relays,Driving Digitals I/O Circuits,Voltage Reduction,Magnetic Switches

Mount

Foot,Single Hub

product series specifications

Supply Voltage:

120 VAC (TR40VA001US, TR40VA002US, TR50VA001US, TR50VA005US, TR100VA001US, TR100VA002US)

120/208/240/277/480 VAC (TR50VA022US, TR100VA004US)

Secondary Voltage: 24 VAC

Supply Frequency (Hz):

40 (TR40VA001US, TR40VA002US),

50 (TR50VA001US, TR50VA002US, TR50VA005US),

96 (TR100VA001US, TR100VA002US, TR100VA004US)

Transformer Class: Class 2

Over Current Protection:

Inherently Limited (TR40VA001US, TR40VA002US),

3 Amp Fuse (TR50VA001US),

Circuit Breaker (TR50VA022US, TR50VA005US, TR100VA001US, TR100VA002US, TR100VA004US)

Mounting:

Foot & Single Threaded Hub (TR40VA001US, TR50VA001US, TR100VA001US, TR100VA005US)

Foot & Dual Threaded Hub (TR40VA002US, TR50VA022US, TR100VA002US, TR100VA004US)

Ambient Temperature: -30 to 140 °C

Manufactured:USA

Wiring: 8 AWG Typical

Weight (lbs):

1.80lbs (TR40VA001US, TR40VA002US)

2.20lbs (TR50VA001US), 2.65 (TR50VA002US)

3.40lbs (TR100VA001US, TR100VA002US)

3.60lbs (TR100VA004US)

Approvals: CE, RoHS, UL File #E197146

Warranty: 1 Year

product series features

Foot and Hub mounted models available
Class 2 rated
Color coded wire leads

more information & related documents

Series Description

The Functional Devices US-made transformers come in 40VA, 50VA, and 96VA options. They are Class 2 and have UL, CE, and cUL approvals. They all feature split bobbin construction. Some also have a secondary circuit breaker.

Kele Description

TRANSFORMER, 40VA, 120 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, INHERENT

Manufacturer

Functional Devices
