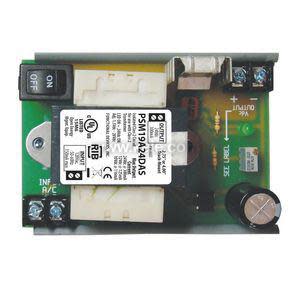

PSM19A24DAS | Functional Devices | Power Supplies
Track Mount Isolated Linear DC Power Supply, 120 Vac to 1.5-28 Vdc, 300mA Adjustable Output
Brand:Functional Devices
MPN:PSM19A24DAS
SKU:PSM19A24DAS
List Price:
$141.00
Today's Price:
$73.32
Log in for customized pricingproduct specifications
Output Voltage
1.5-28 VDC
Primary Voltage Input
120 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
24 VDC
Type
DC Power Supply
Primary Voltage
120 VAC
DC Current Output
300M Amps
Mount
Track
product series specifications
Input:
PSM19: 120 VAC 50/60 Hz 150 mA maximum
PSM24:24 VAC 50/60 Hz 950 mA maximum
PSMN40: 120 VAC 50/60 Hz 400 mA maximum
Output Voltage: 24 VDC, adjustable 1.5-28 VDC
Output Current: PSM24/PSM19: 300 mA @ 24 VDC, 125 mA @ 12 VDC, 116 mA @ 10 VDC, PSMN40A: 1A @ 24 VDC
Line Regulation: 0.625 mV/V, 8 mV/V
Load Regulation: 0.04%
Ripple: 0.0016%, 24 VDC @ 300 mA, 0.0016%, 24 VDC @ 1A
Operating Temperature: -30° to 140°F (-34° to 60°C)
Mounting: MT212 track (provided)
Dimensions: PSM24/PSM19: 4"H x 2.75"W x 1.63"D (10.1 x 6.9 x 4.1), PSMN40: 5"H x 2.75"W x 2"D (12.7 x 6.9 x 5.1)
Approvals: Class 2 UL916 listed, ULC, File #E68805
Weight: PSM24/PSM19: 1.1 lb (0.49 Kg), PSMN40: 1.5 lb (0.68 Kg)
Warranty: 1 year
product series features
- Isolated, regulated 24 VDC output
- UL Listed for Class 2 circuits
- On/Off switch
- LED indication
- Track mounted
- Full-wave rectified
- Class 2 UL916 File #E68805
- 1 Year warranty
more information & related documents
Series Description
The PSM Series DC power supplies provide an isolated and regulated 24 volt DC output from a voltage input of either 120 volt AC or 24 volt AC. Each power supply model is UL listed for use in Class 2 circuits.
Kele Description
PANEL POWER SUPPLY 4IN 120VAC IN 1.8-28VDC ADJ OUT ON/OFF SW + MT212-4
Manufacturer
Functional Devices
Related Documents
PSM Series Datasheet
