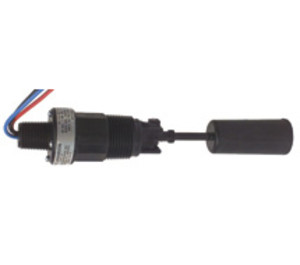

* product series image displayed

L8 | Dwyer Instruments | Level

FLOAT SWITCH 5A SPDT PLASTIC

Brand:Dwyer Instruments

MPN:L8

SKU:L8

List Price:

$301.00

Today's Price:

$156.52

product datasheet

catalog page

product specifications

Cable Length

18 in

Type

Float Level Switch

Display

Supply Voltage (Nominal)

120 VAC,240 VAC

Sensing Type

Pressure

product series specifications

Relay Type: SPDT

Relay Rating: 5A @ 125/250 VAC

Operating Pressure: 150 psig (10.34 bar)

Specific Gravity: 0.6 minimum

Mounting: Horizontal with index arrow pointing down

Process Connection: 1" MNPT

Dimensions: 1.8" H x 8.6" W x 1.8" D (4.6 x 21.9 x 4.6 cm)

Conduit Connection: 1/2” NPT

Wiring Terminations: 18 AWG, 18" (460 mm) long

Red: Normally Closed

Blue: Normally Open

Black: Common

Operating Temperature: 212°F (100°C) maximum

Wetted parts: PPS plastic with SS pin and spring

Weight: 0.3 lb (0.14 Kg)

Approvals: CE, UL File #E38115

Warranty: 1 year

product series features

CE approved
Polyphenylene sulfide float
Magnetically actuated
Good for specific gravities 0.6 and greater
1 in. NPT(M) mounting

more information & related documents

Series Description

The Model L8 Float Switch is an excellent, low-cost, general-purpose float switch engineered for use in Building Automation Systems, BAS, and HVAC environments. These float switches are magnetically actuated for long life and decreased maintenance, with a high chemical resistance.

Kele Description

FLOAT SWITCH 5A SPDT PLASTIC

Manufacturer

Dwyer Instruments
