629C-02-CH-P1-E1-S3

629C-02-CH-P1-E1-S3 | DWYER INSTRUMENTS INC | Pressure

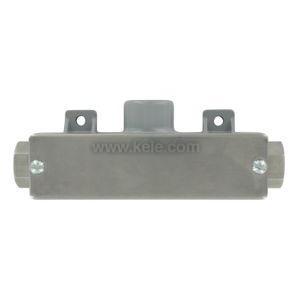

Dwyer 629C Wet/Wet Differential Pressure Transmitter, ±0.50%, 0-10 psid, Conduit housing, NEMA 4X (IP66), 1/4˝ Male NPT, Cable Gland with 3´ of Prewired Cable, Field selectable 0-5, 1-5, 0-10, 2-10 VDC

Manufacturer:DWYER INSTRUMENTS INC

MPN:629C-02-CH-P1-E1-S3

SKU:629C-02-CH-P1-E1-S3

list price:

730.00

365.00



(login for better pricing)
USD

availability:Usually Ships in Less Than 10 Business Days

add to cart

arrow

product specifications

Accuracy

±0.50%

Description

Dwyer 629C Wet/Wet Differential Pressure Transmitter, ±0.50%, 0-10 psid, Conduit housing, NEMA 4X (IP66), 1/4˝ Male NPT, Cable Gland with 3´ of Prewired Cable, Field selectable 0-5, 1-5, 0-10, 2-10 VDC

Direction

Uni-Directional

Housing Rating

NEMA 4X

Measurement

PSID

Output

0-5 VDC||1-5 VDC||0-10 VDC||2-10 VDC

Short Description

WET-WET DIFF PRESS XMTR, WET-WET, ±0.50%, 0-10 PSID, FLD SEL OUT, NO REM SNSR, NO LCD

Type

Wet-Wet

product family features

  • High accuracy
  • Removable terminal block reduces wiring difficulties saving installation time
  • Optional LCD indicator provides local status to identify operational conditions
  • Very reliable with minimum moving parts
  • NEMA 4X (IP66) construction

more information & related documents

Family Description

The Dwyer 629C Series differential pressure transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4-20 mA output signal for two wire circuits. Small internal volume and minimum moving parts result in exceptional response and reliability. Terminal block, zero and span adjustments are easily accessed under the top cover. The 629C Series differential pressure transmitter is designed to meet NEMA-4X (IP66) construction.

Kele Description

WET-WET DIFF PRESS XMTR, WET-WET, +/-0.50%, 0-10 PSID, FLD SEL OUT, , NO LCD

Manufacturer

DWYER INSTRUMENTS INC
