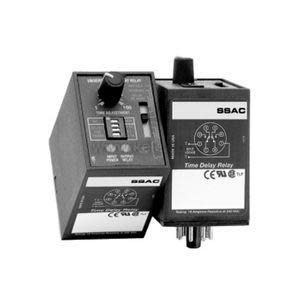

TRU3 | Littelfuse | Relays & Contactors
Timer-Multifunction 24-240VAC 24VDC DPDT Adjustable 11pin
Brand:Littelfuse
MPN:TRU3
SKU:TRU3
List Price:
$339.00
Today's Price:
$176.28
Log in for customized pricingproduct specifications
Type
Multi-Function
Contact Type
DPDT
Number of Relays
1
Coil Voltage
12 VAC,12 VDC,208 VAC,277 VAC
Mount
Surface
product series specifications
Input Voltage: 19 to 264 VAC and 19 to 30 VDC
Frequency: 50/60 Hz
Output Type: Electromechanical relay
Contact Configuration: SPDT & DPDT, isolated
Load Type: 10A resistive @ 120/240 VAC, 28 VDC; 1/3 HP @ 120/240 VAC
Electrical Life: 1 million operations
Mechanical Life: 10 million operations
Accuracy: ±0.1%
Adjustments: 4 position DIP switch
Operating Temperature: -4° to 149°F to (-20° to 65°C)
Storage Temperature: -22° to 185°F (-30° to 85°C)
Mounting: Plug-in socket
Approvals: CE, CSA, UR File #E57310
Weight: 0.38 lb (0.17kg)
Warranty: 10 years
product series features
- Microcontroller +/-0.1% repeat accuracy
- Six timing functions are switch selectable
- 0.1s - 1000m in six ranges
more information & related documents
Series Description
The TRU Series is a multifunction, knob adjustable, universal time delay relay. It includes six of the most popular timing functions selected by a slide\nswitch. The time delay is knob adjustable and the time delay range is switch selectable. The repeat accuracy is ± 0.1%. Both function and time range\ncan be selected on the top face of the unit. In addition to multifunctioning and multiple time ranges, the TRU Series features universal input voltage; 19 to 264VAC and 19 to 30VDC and full 10A output relay. The TRU Series can directly replace up to 1000 competitive time delay relay models.
Kele Description
MULTIFNCTN 24-240AC 24DC, DPDT,ADJ 11 PIN PLG-IN
Manufacturer
Littelfuse
Related Documents
TRU Series Data Sheet
