NDS-8 | Littelfuse | Relays & Contactors

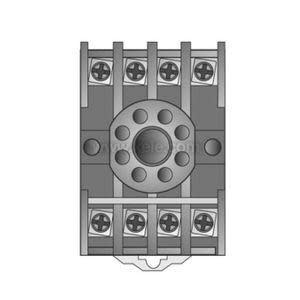

8 Pin Socket Base 300Vac Surface Or Din

Brand:Littelfuse

MPN:NDS-8

SKU:NDS-8

List Price:

$18.00

Today's Price:

$9.36

product datasheet

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Socket

Mount

Surface

product series specifications

Input Voltage: 19 to 264 VAC and 19 to 30 VDC

Frequency: 50/60 Hz

Output Type: Electromechanical relay

Contact Configuration: SPDT & DPDT, isolated

Load Type: 10A resistive @ 120/240 VAC, 28 VDC; 1/3 HP @ 120/240 VAC

Electrical Life: 1 million operations

Mechanical Life: 10 million operations

Accuracy: ±0.1%

Adjustments: 4 position DIP switch

Operating Temperature: -4° to 149°F to (-20° to 65°C)

Storage Temperature: -22° to 185°F (-30° to 85°C)

Mounting: Plug-in socket

Approvals: CE, CSA, UR File #E57310

Weight: 0.38 lb (0.17kg)

Warranty: 10 years

product series features

Microcontroller +/-0.1% repeat accuracy
Six timing functions are switch selectable
0.1s - 1000m in six ranges

more information & related documents

Series Description

The TRU Series is a multifunction, knob adjustable, universal time delay relay. It includes six of the most popular timing functions selected by a slide\nswitch. The time delay is knob adjustable and the time delay range is switch selectable. The repeat accuracy is ± 0.1%. Both function and time range\ncan be selected on the top face of the unit. In addition to multifunctioning and multiple time ranges, the TRU Series features universal input voltage; 19 to 264VAC and 19 to 30VDC and full 10A output relay. The TRU Series can directly replace up to 1000 competitive time delay relay models.

Kele Description

8 PIN SOCKET BASE 300VAC SURFACE OR DIN

Manufacturer

Littelfuse
