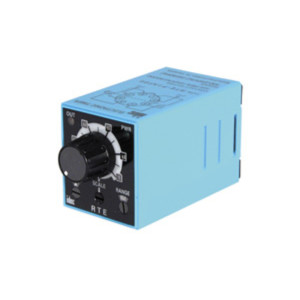

Blue rectangular electronic timer with a black circular dial and two small knobs labeled scale and range.

RTE-P1AD24 | IDEC | Relays & Contactors

Timer Multi Function 10A Contact Delayed DPDT 24VAC/DC 8 Pin Plug-In

Brand:IDEC

MPN:RTE-P1AD24

SKU:RTE-P1AD24

List Price:

$185.84

Today's Price:

$96.64

product datasheet

installation instructions

catalog page

product specifications

Indication

LED

Type

Multi-Function

Contact Type

DPDT

Horsepower

1/6 HP 120 VAC,1/3 HP 240 VAC

Operating Humidity

35 to 85%RH (without condensation)

Mechanical Life

50,000,000 operations minimum

Reset Time

100ms maximum

Warranty

1 year

Number of Relays

Contact Rating

10 A

Current Rating

10 A

Operating Temperature

-4 to 149 °F (-20 to 65 °C) without freezing

Approvals

CE Approved, UL Listed

Coil Voltage

24 VAC,24 VDC

Mount

DIN rail

product series specifications

Time Delay Settings: 0.1 sec to 600 hours

Contact Configuration: 2 Form C, DPDT (delay outputs)

Load Type: 10A resistive @ 240 VAC, 30 VDC; 7A inductive @ 240 VAC, 30 VDC; 1/6 hp @ 120 VAC; 1/3 hp @ 240 VAC

Input:

AD models 24 VAC/VDC (3.5 VA/1.7W)

AF models 120VAC (6.6 VA)

Operating Temperature: -4° to 149°F (-20° to 65°C)

Operating Humidity: 35% to 85% RH

Reset Time: 100 mS maximum

Accuracy: ±0.2%, ±20 mS

Setting Error: ±10% maximum

Insulation Resistance: 100 MΩ minimum (500 VDC)

Dielectric Strength:

Between power and output terminals: 2000 VAC, 1 minute

Between contacts of different poles: 2000 VAC, 1 minute

Between contacts on the same pole: 1000 VAC, 1 minute

Electrical Life: 500,000 operations (resistive)

Mechanical Life: 50 million operations

Weight: 0.2 lb (0.091 kg)

Approvals: UL listed, File #E66043, CE

Warranty: 1 year

product series features

Selectable 10 timing functions and 20 time ranges
Time delay settings from 0.1 second to 600 hours
Two Form C delayed output contacts
Space-saving package
High repeat accuracy of 0.2%
On and timing out LED indicators
Standard 8-pin, 11-pin, or 11-blade relay socket
UL Listed, CE certified

more information & related documents

Series Description

The RTE Series Multi-Function Electronic Timers are socket-mounted adjustable time delay relays available in two function groups, making them ideal for Building Automation Systems, BAS. The timer functions and time ranges are easily selected by setting external switches. The knob on the front of the timer is used to set the precise delay period within the selected time range. Timer functions RTE-B1/RTE-P1 are power-triggered and include ON-Delay, Interval, OFF-Cycle, ON-Cycle. Timer functions for RTE-B2/RTE-P2 are signal triggered and include ON-Delay, OFF-Cycle, OFF-Delay, ON-Cycle and Single-Shot.

Kele Description

TD RELAY 24VAC/DC INT/DOM 0 - 600HR

Manufacturer

IDEC
