AMT12-D2 | Altech | Relays & Contactors

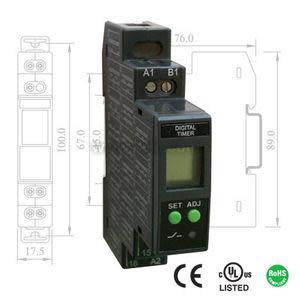

Multifunctional Timer (18 Functions), Universal Voltage 24-265 VAC/ Dc,Wide Time Range: 0.1S - 999H
Brand:Altech
MPN:AMT12-D2
SKU:AMT12-D2
List Price:
$330.00
Today's Price:
$171.60
Log in for customized pricingproduct specifications
Type
Universal Digital
Contact Rating
10 A
Current Rating
8 A
Coil Voltage
24 VAC,24 VDC,120 VAC,208 VAC,240 VAC
Mount
DIN rail
product series specifications
Supply Voltage: 24-265 VAC/ DC (50, 60Hz)
Timing Range: 10 VA max.
Reset Time: 200ms max.
Repeat Accuracy: +/-0.5%
Output Contact Rating: 8A @ 240 VAC/ 24 VDC (resistive)
Electrical Life:10,000 switching cycles
Mechanical Life: 2,000,000 switching cycles
AC-15 Rating: Rated voltage (Ue): 125/240V, rated current (le): 3/1.5A
DC-15 Rating: Rated voltage (Ue): 125/240V, rated current (le): 2/0.00/0.1A
Operating Temperature: -10°C - +55°C (+14°F - 131°F)
Storage Temperature: -20°C - +65°C (-4°F - 149°F)
Weight: 0.14lb (85g)
Protection Enclosure: IP30
Protection Terminals: IP20
Torque: 0.40 Nm (3.5 lb in.)
Terminal Wire Size: 0.3-2.5 mm2 (22-14 AWG)
Approvals: RoHS, CE, CULus Listed
product series features
- Multifunctional timer (8 or 18 functions)
- Universal voltage 24-265 VAC/ DC
- Wide time range: 0.1s - 999h
- 3 Digit LCD display for preset time and run time
- DIN Rail mounted
- 17.5mm width
more information & related documents
Series Description
Altech's AMT-Series of Universal Digital Multi-Timers comprises 4 models featuring 8 or 18 timer functions to offer the highest flexibility in controlling operations. The time range is adjustable from 0.1s to 999h. An LCD display shows current run time information.
Kele Description
18 FUNCTION TIMER UNV VOLT 24~265 VAC/ DC
Manufacturer
Altech
AMT12-S1 and AMT12-D2 Manual
