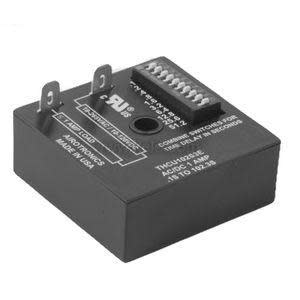

Small black relay module with DIP switches and two spade connectors.

THCU1023E | Airotronics | Relays & Contactors

Delay On Make Universal AC/DC Voltage, 1-1023 Adjustable Time

Brand:Airotronics

MPN:THCU1023E

SKU:THCU1023E

List Price:

$85.68

Today's Price:

$44.55

product datasheet

catalog page

product specifications

Type

Delay on Make

Mount

Surface

product series specifications

Supply Voltage: 19-265 VAC; 10-120 VDC

Frequency: 50/60 Hz

Switching Current: 1 Amp steady state max., 10 mA min., 10 Amps inrush

Output Leakage:

Current in "Off" State:

6.4 mA @ 265 VAC

3.3 mA @ 120 VAC

1.6 mA @ 48 VAC

1.0 mA @ 24 VAC

Time Range: 1-1023 seconds in 1-sec. increments

Reset Time:

25 milliseconds after timing cycle

200 milliseconds during timing cycle

Operating Temperature: -13 to 149°F (-25 to 65°C)

Storage Temperature: -40° to 185°F (-40° to 85°C)

Approvals: UR #E103703, CE, CSA, RoHS

Weight: 0.25lb (0.12kg)

Warranty: 1 Year

product series features

DC polarity is independent
Digital timing accuracy
Eliminates contactor

more information & related documents

Series Description

The Airtronics THCU-E Series is a universial AC/DC voltage solid state timer in a compact 2 in x 2 in configuration. This unit features wide operating voltages: 19 to 265 VAC and 10 to 120 VDC THCU-E offers three time ranges: 0.1 second to 102.3 seconds in 0.1-second increments, 1 second to 1023 seconds in 1-second increments, or 10 to 10230 seconds in 10-second increments. Ten-position binary dipswitch is easy to program. Advanced digital circuitry provides this timing module with unsurpassed accuracy and reliability.
