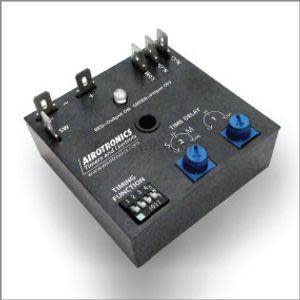

MC3003601H | Airotronics | Relays & Contactors
10 TIME FUNCTIONS, 24VAC/DC, 10A SPDT COMPACT PKG
Brand:Airotronics
MPN:MC3003601H
SKU:MC3003601H
List Price:
$210.00
Today's Price:
$109.20
Log in for customized pricingproduct specifications
Type
Multi-Function
Number of Relays
1
Contact Rating
10 A
Current Rating
10 A
Contact Type
SPDT
Coil Voltage
24 VAC,24 VDC
Mount
DIN rail,Surface
product series specifications
Input Voltage:
MC10036xxx 120 VAC
MC30036xxx 24 VAC
Frequency: 50/60 Hz
Output Current: 10A resistive, max.
Repeatability: 0.1% or 20 mS, whichever is greater
Operating Temperature: -13° to 140°F (-25° to 60°C)
Storage Temperature: -40° to 185°F (-40° to 85°C)
Approvals: cURus, RoHS
product series features
- Multifunction, accurate timing
- Binary dispswitches
- Wide selection of timing ranges
- Wide seclection of AC and DC input voltages
- Totally encapsulated for protection from harsh environments
more information & related documents
Series Description
The Airtronics MC36xx Series are multifunction timers with dipswitch settings, relay output and LED indicator. These timers are extremely versatile and offer extensive options. Some models have 9 single-setting timing modes and 2 dual-setting timing modes in a single unit. They offer time delays from 1 to 100 seconds or 1 to 100 minutes. The others offer 5 timing modes in a single unit with time delay settings from 0.1 second to 1023 minutes.
Kele Description
10 TIME FUNCTIONS, 24VAC/DC, 10A SPDT COMPACT PKG
Manufacturer
Airotronics
Related Documents
MC 363 Series Datasheet
