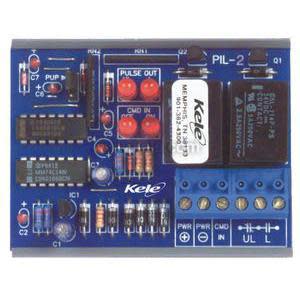

Blue circuit board with white relay, red buttons and multiple screw terminals

PIL-2 | Kele | Transducers

Board Mounted Motor Starter Interface Relay, 24 VAC/DC, 300 ms Pulse

Brand:Kele

MPN:PIL-2

SKU:PIL-2

List Price:

$184.00

Today's Price:

$95.68

catalog page

product specifications

Type

Pulse

Number of Relays

Contact Rating

5 A

Current Rating

5 A

Contact Type

SPST

Coil Voltage

24 VAC,24 VDC

Feature

LED

Mount

Snap Track

product series specifications

Supply Voltage: 24 VAC/VDC @ 50 mA

Input: SPST switch or relay

Output: One N.O. contact rated 120 VAC, 5A; one N.C. contact rated 120 VAC, 5A

Output Pulse Time: 300 mS (contact Kele for special pulse time requiements, 5 sec maximum)

Weight: 0.25 lb (0.11 kg)

Warranty: 18 months

product series features

LED indicators: Pulse out: latch/unlatch, Command in: off/on
24 VAC/DC power
Selectable power-up state (PUP)
Snap-track mounting for easy installation

more information & related documents

Series Description

The Kele PIL-2 Motor Starter Interface is designed to provide momentary contact closures to control motor starters with momentary start/stop push buttons. The motor starter interface acts as a remote start/stop station using a single maintained contact from a controller, switch or relay.

Kele Description

PULSE INITIATOR/UNLATCH N/C

Manufacturer

Kele
