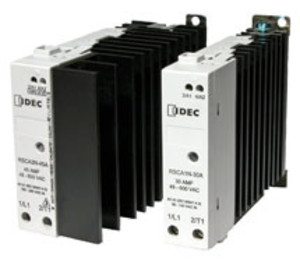

* product series image displayed

RSCDN-45A | IDEC | Relays & Contactors

SOLID STATE RELAY W/ HEAT SINK, 45A

Brand:IDEC

MPN:RSCDN-45A

SKU:RSCDN-45A

List Price:

$230.25

Today's Price:

$119.73

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Solid State

Contact Rating

45 A

Current Rating

45 A

Supply Voltage (Nominal)

24 VDC

Coil Voltage

24 VDC

Mount

DIN rail,Panel

product series specifications

Input Current: 16 mA minimum

Frequency Range: 47 - 63 HZ

Drop Out Voltage: 1 VDC

Voltage Range: 4 - 32 VDC

Contact Type: SPST-N.O.

Off State Leakage: 120 µA @ 32 VDC

Isolation: 4200 Vrms

Minimum Current: 100 mA

Output Current: 20A, 30A, 45A

Output Voltage: 48 - 600 VAC

Voltage Drop: 1.2V @ rated current (maximum)

Dielectric Strength: 4000 Vrms minimum

Zero Voltage Switching: Yes

Wire Size: Input 16 - 24 AWG

Output: 8 - 16 AWG

Turn Off Time: 10 ms @ 50 Hz; 8.33 ms @ 60Hz

Turn On Time: 10 ms @ 50 Hz; 8.33 ms @ 60Hz

Operating Temperature: -4° to 176°F (-20° to 80°C)

Materials Of Construction: Heat sink: anodized black aluminum Housing: polycarbonate UL94-10

Approvals: UL-recognized component, File #E194577; CSA CE certified

Weight: 20A, 30A models: 0.5 lb (0.225 kg),45A model:0.88 lb (0.4 kg)

Warranty: 1 Year

product series features

Built-in heat sink
4200V optical isolation
Zero-voltage switching
Built-in transient protection
Dual SCR output
Input status LED

more information & related documents

Series Description

The RSC Series solid-state relays accept a 4-32 VDC control input and offer optical isolation between the input and output. The RSC Series is designed for DIN or panel mounting and features zero switching voltage, built-in transient protection, and LED indication. The built-in heat sink maximizes current output capabilities-ideal for controlling inductive loads, lamps, motors, and transformers.

Kele Description

SOLID STATE RELAY W/ HEAT SINK, 45A

Manufacturer

IDEC
