RIBMW24B-44-BC | Functional Devices | Relays & Contactors

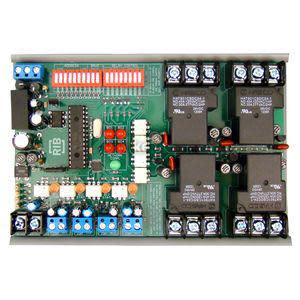

4.00" Track Mount BACnet MS/TP Network Relay Device, Four Binary Outputs, Four Binary Inputs (Dry Contact Binary Inputs), 24 Vac/dc Power Input
Brand:Functional Devices
MPN:RIBMW24B-44-BC
SKU:RIBMW24B-44-BC
List Price:
$520.00
Today's Price:
$270.40
Log in for customized pricingproduct specifications
LCD
Track
Communication Protocol
BACnet
Type
BACnet
Contact Type
SPDT
Power Input
400 mA @ 24 VAC,190 mA @ 24 VDC
Number of Relays
4
Contact Rating
20 A
Current Rating
20 A
Coil Voltage
24 VAC,24 VDC
Feature
LED
Application
MT4-6
Mount
Track
product series specifications
Supply Voltage: 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA
Contact Rating: 20A resistive @ 277 VAC, 20A ballast N.O. @ 120/277 VAC, N.C. @ 277 VAC, 10A tungsten N.O. @ 120 VAC, 1110 VA pilot duty @ 277 VAC, 770 VA pilot duty @ 120 VAC, 2 hp @ 277 VAC, 1 hp @ 120 VAC
Frequency: 50/60 Hz
Relay Type: SPDT
Duty: Continuous duty
Life Expectancy: 10 million cycles minimum
Baud Rate: 9600, 19200, 38400, 57600, 76800, and 115200
LED Indication: Green: network status, Red: relay status
Operating Temperature: -30° to 140°F (35° to 60°C)
Operating Humidity: 5% to 95% non-condensing
Housing Type: NEMA 1, plenum rated
Conduit Hub: 1/2" NPT
Dimensions: 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); ½" NPT nipple
Approvals: UL listed file #E68805, CE certified, BACnet certified
Weight: 0.83 lb (0.38 Kg)
Warranty: 1 year
product series features
- Enclosed BACnet relay with 20A contacts
- Additional dry contact input (powered by Class 2 circuit)
- LED indication of network status and relay status
- UL listed and BACnet compatible, CE
more information & related documents
Series Description
The Functional Devices Model RIBTW2401B-BC and RIBTW2402B-BC BACnet Relay in a Box are open-protocol relays controlled from a remote location using a BACnet network. The relay is powered locally, and communication with the network is over a twisted pair of wires. Using standard BACnet objects, the relay can be commanded on and off over the network and the relay state communicated back. A separate digital input is provided to communicate the status feedback signal from a current switch (or other switched feedback device) to the BACnet network.
Kele Description
BACNET PANEL RELAY 4.00IN 20AMP SPDT 24VAC/DC WITH 4 BI + 4 BO
Manufacturer
Functional Devices
RIB Network Devices Information
