RIBL12BM | Functional Devices | Relays & Contactors

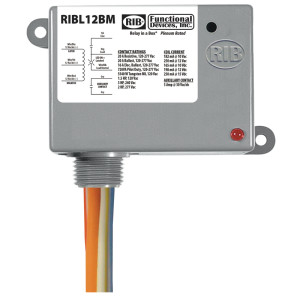

Enclosed Mechanically Latching Relay 20 Amp SPST with 12 VAC/VDC Coil, Status LED and Auxiliary Output
Brand:Functional Devices
MPN:RIBL12BM
SKU:RIBL12BM
List Price:
$286.00
Today's Price:
$148.72
Log in for customized pricingproduct specifications
Indication
LED
Weight
0.5 lbs (0.22 Kg)
Type
Latching
Contact Type
SPST
Operating Humidity
5 to 95% (noncondensing)
Mechanical Life
10 Million Cycles Minimum
Warranty
1 Year
Number of Relays
1
Contact Rating
20 A
Current Rating
20 A
Enclosure Rating
NEMA 1
Operating Temperature
-30 to 140 °F (-34 to 60 °C)
Approvals
CE Approved, UL Listed, C-UL, RoHS
Coil Rating
250 mA @ 12 VAC; 198 mA @ 12 VDC
Dimensions
1.8 in H x 3.2 in W x 2.3 in D (4.6 x 8.1 x 5.8 cm)
Coil Voltage
12 VAC,12 VDC
Mount
Surface
Operate Time
50ms
product series specifications
Operate Time: 50 ms
Pulse Length: 30 seconds (maximum)
Frequency: 50/60 Hz
Wire Type: 16" (46 cm) 600 v
Life Rating: 1 million cycles minimum mechanical
Operating Temperature: -30° to 140°F (-34° to 60°C)
Operating Humidity: 5 to 95% RH non-condensing
Housing Type: NEMA 1, plenum rated
Conduit Hub: 0.5" NPT nipple
Dimensions:
B, SB: 1.7" x 2.8" x 1.5" (4.32 x 7.11 x 3.81 cm)
BM, SBM: 2.3" x 3.2" x 1.8" (5.84 x 8.13 x 4.57 cm)
Approvals: UL listed, UL508, C-UL, CE, RoHS
Warranty: 1 year
product series features
- NEMA 1 Plastic enclosure
- UL Listed
- Energy efficient (no coil draw when relay is active)
- Optional override switch
- Optional status LED
- Optional auxilary contacts for status control
more information & related documents
Series Description
The RIBL Latching Series relays from Functional Devices are activated by pulse commands from a controller. The relay contacts are mechanically latched in the closed position and the load will remain on in the event of a control panel failure period. If power is completely lost the contacts will remain in their last state and the load will activate upon the return of normal power or emergency power.
Kele Description
ENCLOSED RELAY 20AMP 12VAC/DC LATCHING WITH AUX CONTACT
Manufacturer
Functional Devices
RIBL12BM Datasheet
