RIBRL1C

RIBRL1C | Functional Devices | Relays & Contactors

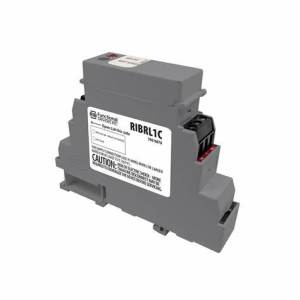

DIN Mount Relay 10 Amp SPDT with 10-30 Vac/dc Coil

Brand:Functional Devices

MPN:RIBRL1C

SKU:RIBRL1C

List Price:

$55.00

Today's Price:

$28.60



Availability: 89 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Coil Voltage

24 VAC, 24 VDC

Contact Rating

10A

Contact Type

1-SPDT

Mount

DIN Rail Mount

Type

Plastic Box

Function Type

Track Mount

product series specifications

    # Relays & Contact Type:
  • One (1) DPDT Continuous Duty Coil
    Expected Relay Life:
  • 10 million cycles minimum mechanical
    Operating Temperature:
  • -30 to 140° F
    Humidity Range:
  • 5 to 95% (noncondensing)
    Operate Time:
    :
  • RIBR24 8mS
    :
  • RIBRL1 20mS
    Relay Status:
  • LED On = Activated
    Dimensions:
  • 3.88Àù x 2.76Àù x 0.78Àù
    Terminal Strip:
  • 14-22 AWG wire
    Approvals:
  • UL Listed, UL 916, C-UL
    Replacement Relay:
  • AR24D
    Accessories:
  • ADIN35, ADIN35ES
    Warranty:
  • 1 year

product series features

  • UL- Listed
  • DIN mount socket
  • RIBRL1 (SPDT), RIBR24 (DPDT)
  • LED Status Indicator
  • Select models with Override

more information & related documents

Series Description

The Functional Devices RIBR Series are DIN mounted 10 amp pilot control relays. The Functional Devices DIN Rail Mount Relay in a Box® features a removable socket relay for easy replacement as well as a 10 amp contact rating and comes in 10-30 VAC/DC or 24 VAC coil voltages. These multi-coil voltages are suitable for a wide variety of applications and also eliminate the need have multiple relays on the job. Made in the USA to UL 916 and backed with the quality guarantee you have come to expect from the RIB relay products.

Kele Description

DIN MOUNT RELAY 10 AMP SPDT WITH 10-30 VAC/DC COIL

Manufacturer

Functional Devices
