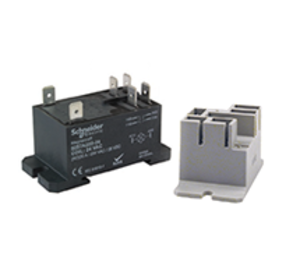

* product series image displayed

W92S7A22D24 | Schneider Electric Buildings | Relays & Contactors

RELAY, DPST-NO, 30A, 24VAC

Brand:Schneider Electric Buildings

MPN:W92S7A22D24

SKU:W92S7A22D24

List Price:

$44.97

Today's Price:

$23.38

catalog page

product specifications

Number of Relays

Contact Rating

30 A

Current Rating

30 A

Contact Type

DPST

Coil Voltage

24 VAC

Mount

DIN rail,Surface

product series specifications

Current Rating:

W92S7 & W9AS1 30A

W9AS5 30A (NO) 15A (NC)

Contact Configuration:

W92S7 DPST-NO

W9AS1 SPST-NO

W9AS5 SPDT

Operating Temperature: -40° to 131°F (-40° to 55°C)

Storage Temperature: -40° to 185°F (-40° to 85°C)

Weight:

W92S7 3.03 oz (86 g)

W9AS1 & W9AS5 1.16 oz (33 g)

Approvals:

W92S7 UL (E43641), CSA (168986), CE (per IEC 60947), RoHS

W9AS1 & W9AS5 UL (E43641)

product series features

High current capability
Small size
Surface or DIN rail mount

more information & related documents

Series Description

The Magnecraft W9AS and W92S are heavy-duty power relays. High current handling capability, small size and low cost make these relays well suited for control of HVAC equipment including motors, heaters, refrigeration equipment and lighting control.

Kele Description

RELAY, DPST-NO, 30A, 24VAC

Manufacturer

Schneider Electric Buildings
