4116U | Peltec | Relays & Contactors

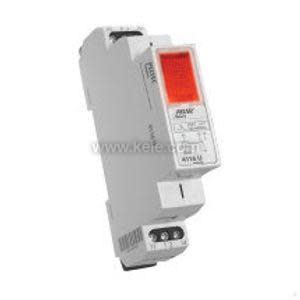

Relay, 16A SPDT, Universal Voltage AC/DC, Din Rail
Brand:Peltec
MPN:4116U
SKU:4116U
List Price:
$106.00
Today's Price:
$55.12
Log in for customized pricingproduct specifications
Type
Universal AC/DC
Number of Relays
1
Contact Rating
16 A
Current Rating
16 A
Contact Type
SPDT
Coil Voltage
24 VDC
Mount
DIN rail,Surface
product series specifications
Input Voltage: 12-240 VAC/VDC
Frequency: 50/60Hz
Input Terminals: A1-A3
Inrush Current: 30 Amps / <3s
Operating Temperature: -4° to 131°F (-20° to 55°C)
Visual Indication Color: Red LED standard
Mechanical Life: 30 million operations
Mounting: DIN rail
Wire Size: 14AWG
Weight: 0.25 lb (0.12 kg)
Approvals: UL Listed File #E352333, CE, RoHS
Warranty: 1 Year
product series features
- Coil is diode-suppressed
- DIN rail mount for easy installation
- Red LED is standard
more information & related documents
Series Description
The Peltec 400 Series universal voltage power relays can be used in HVAC, motor controls, lighting systems, and pump controller applications. The output indicator is intensified by lens.
Kele Description
RELAY, 16A SPDT, UNIVERSAL VOLTAGE AC/DC, DIN RAIL
Manufacturer
Peltec
Related Documents
4308U Data sheet
