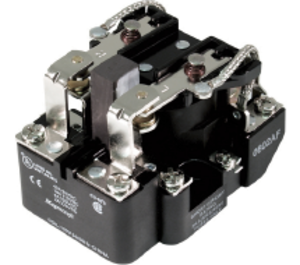

* product series image displayed

199DX-2 | Schneider Electric Buildings | Relays & Contactors

P994012E

Brand:Schneider Electric Buildings

MPN:199DX-2

SKU:199DX-2

List Price:

$195.00

Today's Price:

$101.40

catalog page

Lead time of 7 days. Chat with Kele experts now

product specifications

Contact Type

SPST

Number of Relays

Contact Rating

40 A

Current Rating

40 A

Coil Voltage

12 VDC

Mount

Panel

product series specifications

Current Rating: 40Amp

Coil Voltage Range: 6 to 600 VAC; 6 to 250 VDC

Coil Power 10 VA; 4 W (maximum)

Maximum Switching Voltage: 600 V

Rated Switching Current at Voltage:

Resistive:

40A at 300 VAC

5A at 480 VAC

5A at 600 VAC

40A at 28 VDC

Motor 2 HP at 120 to 600 VAC

Tungsten 15A at 120 VAC

Minimum Switching Requirement: 1A at 5 VAC/VDC

Dielectric Strength:

Between Coil and Contact 2200V

Between Poles 2200V

Between Open Contacts 1600V

Frequency: 50/60 Hz

Contact Material: Silver tin oxide (AgSnO)

Operating Temperature: -67° to 131°F (-55° to 55°C)

Storage Temperature: -67° to 212°F (-55° to 100°C)

Weight: 0.50 to 0.69 lbs (0.23 to 0.31 kg)

Approvals: cULus listed File #E43641, CSA, CE, RoHS

product series features

High current ratings (40 Amps)
AgSnO contacts (Silver Tin Oxide)
Riveted construction
Molded Phenolic base material withstands high temperatures

more information & related documents

Series Description

The 199 Series Power Relays combine high-power switching, durable construction and multiple design options. These relays are the open type with high dielectric strength, with riveted construction that increases the life of the relay. The 40 A 199 Series Power Relays are suitable for anti-condensation equipment, compressor and blower control and motorized duct/vent control applications.

Kele Description

POWER RELAY 40A/SPST-NO-DM/12VDC COIL

Manufacturer

Schneider Electric Buildings
