RIB24P

RIB24P | Functional Devices | Relays & Contactors

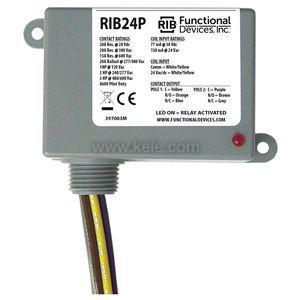

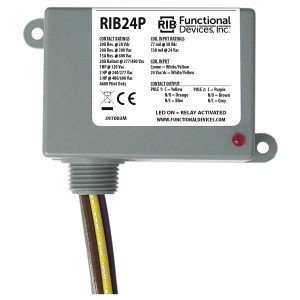

Enclosed Relay 20 Amp DPDT with 24 Vac/dc Coil

Manufacturer:Functional Devices

MPN:RIB24P

SKU:RIB24P

List Price:

102.00

Today's Price:

57.12



(login for better pricing)
USD
Availability: 212 In Stock
Available Inventory
These numbers are estimates and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product specifications

Accessory

Gold Flash

Coil Voltage

24 VAC||24 VDC

Contact Rating

20A @ 300 VAC||20A @ 28 VDC||15A @ 600 VAC||3 HP @ 480-600 VAC||2 HP @ 240-277 VAC||1 HP @ 120 VAC

Contact Type

1-DPDT

Description

Enclosed Relay 20 Amp DPDT with 24 Vac/dc Coil

Enclosure Rating

NEMA 1

Feature

LED

LCD

Surface

Short Description

ENCLOSED RELAY, 1-DPDT, 24 VAC/DC, 20A

product family features

  • Convenient and economical to use
  • Relay status indicator via LED
  • Coil uses low current and accepts a wide range of AC and DC voltages
  • Closed/Open/Auto switch option available
  • Nipple or screw mountable
  • Compact, gray plastic enclosure
  • Color-coded wires for eliminating errors
  • UL listed for UL916 Energy Management and UL864 Fire
  • Made in the USA

more information & related documents

Family Description

The Functional Devices Relay In a Box (RIB) Power Series controls most BAS, HVAC, low-horsepower motor and lighting applications. The relays come mounted and pre-wired in a housing, saving the installer the time, trouble and expense of buying separate components (relay, socket, mounting rail, and enclosure) and assembling them on the job or at the shop. The RIB Power Series has a protruding 1/2" or 3/4" NPT nipple from which all wires exit (except T series). To install, remove a conduit knockout in the equipment, insert the wires and nipple through the hole, tighten the locknut, and connect the wires. RIB Power Series - 20, 30A Relays The RIB Power Series has relay contacts rated for 20 and 30A. They require modest coil drive current and are used for direct switching and control of heavy electrical circuits, such as large resistive, motor, and lighting loads. RIBT Series - High/Low Voltage Separation The RIBT Series is designed to provide physically separate entrances for connections to the relay input coil and output contacts. Relay contact wires exit the housing through a 1/2" or 3/4" NPT nipple. The cover of the RIBT Series is removable and, with star bushings or 1/2" conduit, the coil drive wires can enter the housing through one of two convenient openings. The coil drive wires are secured to screw terminals within a separate wiring compartment in the RIBT. Most of the RIBs in the Power Series are also available in the T Series.

Kele Description

DPDT PROWER RELAY 24VACDC

Manufacturer

Functional Devices
