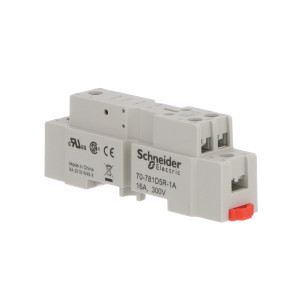

Grey modular relay base labeled 70-781D5R-1A with two terminal slots and red release latch

70-781D5R-1A | Schneider Electric Buildings | Relays & Contactors

Socket, Legacy general purpose relay accessory, SPDT, 16A, 300 V, 5 pins, screw clamping terminal, 781R series

Brand:Schneider Electric Buildings

MPN:70-781D5R-1A

SKU:70-781D5R-1A

List Price:

$24.00

Today's Price:

$12.48

product datasheet

catalog page

product specifications

Type

Socket

Contact Type

SPDT

Number of Relays

Contact Rating

30 A

Current Rating

30 A

Accessory

16-782SC,16-781SC,DINRALU,DINRSTL

Application

Industrial Machine Control,Control Panel,Energy Management

Mount

DIN rail,Surface

product series specifications

Voltage Rating: 300V

Current Rating:

781D5 20A

782D8 16A

782D11 16A

784D14 16A

Terminals: M3.5 zinc-plated steel

Dielectric Strength: 2000 Vms minimum

Wire Size: 20-12 AWG

Operating Temperature: -40° to 176°F (-40° to 80°C)

Mounting:

70-78xD: DIN rail or surface mount

70-781T-1: PCB mount

Flammability Rating: UL 94V-0

Approvals: UL-recognized component, File #E70550, CSA certified File #4078

Weight:

781D5R 0.07 lb (0.032 kg)

782D 0.12 lb (0.055 kg)

783D 0.14 lb (0.062 kg)

784D 0.17 lb (0.077 kg)

781T 0.04 lb (0.018 kg)

Warranty: 1 year

more information & related documents

Series Description

These Relay Sockets are for use with the Magnecraft 781, 782, 783, and 784 Series relays. These sockets have fingersafe screw terminals and can be DIN rail or surface mounted.

Kele Description

RELAY SOCKET, SPDT, DIN/SURFACE MOUNT

Manufacturer

Schneider Electric Buildings
