RL-1 | Kele | Transducers

RL-1 24 VDC RELAY

Brand:Kele

MPN:RL-1

SKU:RL-1

List Price:

$63.79

Today's Price:

$33.17

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

Pulse

Contact Type

SPDT

Number of Relays

Coil Voltage

24 VDC

Mount

Snap Track

product series specifications

Supply Voltage: 24 VAC/VDC @ 50 mA

Input: SPST switch or relay

Output: One N.O. contact rated 120 VAC, 5A; one N.C. contact rated 120 VAC, 5A

Output Pulse Time: 300 mS (contact Kele for special pulse time requiements, 5 sec maximum)

Weight: 0.25 lb (0.11 kg)

Warranty: 18 months

product series features

LED indicators: Pulse out: latch/unlatch, Command in: off/on
24 VAC/DC power
Selectable power-up state (PUP)
Snap-track mounting for easy installation

more information & related documents

Series Description

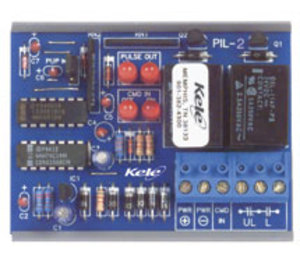

The Kele PIL-2 Motor Starter Interface is designed to provide momentary contact closures to control motor starters with momentary start/stop push buttons. The motor starter interface acts as a remote start/stop station using a single maintained contact from a controller, switch or relay.

Kele Description

RL-1 24 VDC RELAY

Manufacturer

Kele
