GPRS-P3C10D-3 | C3 CONTROLS | Relays & Contactors

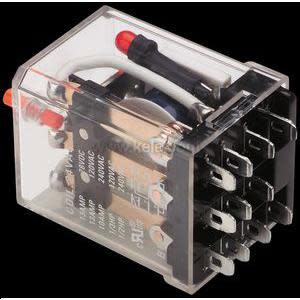

General Purpose Relay, 3PDT, 120 VAC Coil, 10A, Octal, Light Indicator and Mechanical Actuator
Brand:C3 CONTROLS
MPN:GPRS-P3C10D-3
SKU:GPRS-P3C10D-3
product specifications
LCD
LED
Contact Rating
10 A @ 120 VAC,10 A @ 240 VAC,10 A @ 28 VDC,1/3 HP @ 120 VAC,1/2 HP @ 120 VAC,3/4 HP @ 120 VAC,1/2 HP @ 240 VAC,1 HP @ 240 VAC
Contact Type
1 3PDT
Coil Voltage
120 VAC
Application
Industrial Machine Control,Control Panel,Energy Management
Mount
DIN rail,Surface
Function Type
Plug-in
product series specifications
Coil Specifications (@20°C):
Nominal Coil Voltage: 24 VAC, 120 VAC, 240 VAC (@60 Hz)
Power Consumption:1.0 - 2.8 VA
Operating Voltage: 80 - 100%
Nominal Coil Voltage: 24 VDC, 48 VDC, 110 VDC
Power Consumption: 0.8 - 1.5 W
Operating Voltage: 75 - 110%
Operating Ambient Temperature: -49°F to +158°F (-45°C to +70°C)
Operating Humidity (Recommended): 35% - 85% RH
Unit Weight: 0.9 oz x 4.6 oz (24g x 130g)
Contacts: AgNi Alloy
Plated Brass Terminations: Cadmium Free
Solder Connections: Lead Free
Moldings:Thermoplastic & Thermoset
Type: Surface or DIN Rail Mount
Current Carrying Members: Phosphor Bronze Nickel Plated Steel
Electrical Rating: 7 - 25A, 300 - 600 VAC
Approvals: CE, UL Listed File #E236197 (Guide NLDX2, NLDX8) CSA File # 227135, RoHS
product series features
- Multiple styles
- Quick identification
- Convenient customization
- Time savings
- Environmentally safe
- Power savings
- Transparent housing
- Wide range of specifications
more information & related documents
Series Description
c3controls GR Series General Purpose Relays are quick and economical to install, and are available in a variety of base configurations. Our relays come with AC and DC coils for use in multiple applications and are 100% tested to ensure optimal performance in every specification. We even offer hermetically sealed relays for hazardous locations. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
RELAY, 120V AC,3P,OCTAL,10A,W/LIG-ACT
Manufacturer
C3 CONTROLS
Related Documents
GR Series General Purpose Relays Spec Sheet
