1SVR405651R3000 | ABB | Relays & Contactors

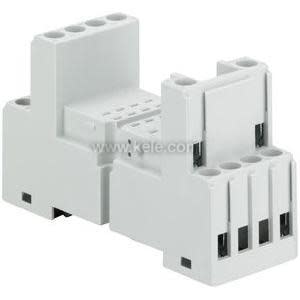

CR-M4SS Standard Relay Socket for 2 C/O or 4 C/O (SPDT) CR-M Relays-Screw
Brand:ABB
MPN:1SVR405651R3000
SKU:1SVR405651R3000
List Price:
$23.00
Today's Price:
$11.96
Log in for customized pricingproduct specifications
Type
Miniature
Contact Type
4PDT
Number of Relays
1
Contact Rating
30 A
Current Rating
30 A
Application
Industrial Machine Control,Control Panel,Energy Management
Mount
Screw
product series specifications
Contact Type: SPDT, DPDT, 3PDT, 4PDT
Output Type: Relay 1 c/o, 2 c/o, 3 c/o, 4 c/o
Contact Material: AgNi, Au 5 µm
Rated Operational Voltage: 250V
Min Switching Voltage: 5V, 10V
Max Switching Voltage: 250 VDC/VAC, 300 VDC, 440 VAC
Minimum Switching Current: 2 mA, 5 mA
Contact Resistance: ≤100mΩ
Max Operating Frequency:
600, 1200 switching cycles/h (rated load AC-1)
72000, 18000, 12000 switching cycles/h (without load)
Response time: typ. 7 to 18 ms
Release time: typ. 3 to 10 ms
Operating Temperature: -40° to 185°F (-40° to 85°C)
Dimensions:
CR-P: 0.5"H x 1.1"W x 0.6"D (1.3 x 2.9 x 1.6 cm)
CR-M: 0.8"H x 1.1"W x 1.4‚"D (2.1 x 2.8 x 3.6 cm)
CR-U: 1.4"H x 1.4"W x 2.2"D (3.5 x 3.5 x 5.4 cm)
Weight:
CR-P: 0.031 lb (0.014 kg)
CR-M: 0.077 lb (0.035 kg)
CR-U: 0.18 lb (0.082 kg)
product series features
- Cadmium-free contact material
- Blade, pin and compact models
- PCB, Surface or DIN rail mounting available (dependent on sockets)
- LED available on CR-U and CR-M models
- Integrated test button on CR-U and CR-M models
more information & related documents
Series Description
The ABB general-purpose relays are available in the CR-P Series blade-style pcb relays, the CR-U Series pin-style relays, and the CR-M Series miniature-style relays. The standard series modeling codes are represented by the 1SVR4056 Series part numbers shown in our ordering charts. Both numbers are recognizable in the industry, but all are ordered using the 1SVR4056 Series part numbering style. The CR-P Series relays are available in both SPDT and DPDT configurations driven by AC or DC coils with blade terminals for socket mounting. The SPDT models have a 16A switching capacity while the DPDT models have an 8A switching capacity. The CR-U Series relays are available in both DPDT and 3PDT configurations driven by AC or DC coils with pin terminals for socket mounting. Both the DPDT and 3PDT models have a 10A switching capacity. The CR-M Series miniature relays are available in DPDT, 3PDT and 4PDT configurations driven by AC or DC coils with blade terminals for socket mounting. The DPDT models have a 12A switching capacity while the 3PDT is at 10A and the 4PDT is at 6A.
Kele Description
RELAY SOCKET FOR 1SVR-M/CR-M4SS/4PDT/SCREW
Manufacturer
ABB
Related Documents
1SVR4056 CR-P, -M, -U Series Product Guide
