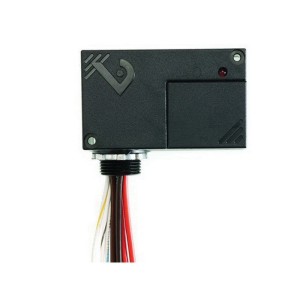

Plain black rectangular module with a tiny red light on the front and multiple coloured wires emerging from a fitting on the bottom.

V421 | Veris | Relays & Contactors

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay with HOA Switch, DPST

Brand:Veris

MPN:V421

SKU:V421

List Price:

$151.00

Today's Price:

$78.52

product datasheet

installation instructions

Lead time of 14 days. Chat with Kele experts now

product specifications

LCD

DIN Rail,Wall

Contact Type

DPST

Number of Relays

Contact Rating

14 A

Current Rating

20 A

Coil Voltage

24 VAC

Feature

LED

Mount

Surface

product series specifications

Operating Temp Range: -34 to 60 °C (-29 to 140 °F)

Operating Humidity Range: 10 to 90% RH non-condensing

Expected Relay Life: Electrical (@ rated current) 100,000 cycles: Mechanical (unpowered) 10,000,000 cycles

Relay Status: LED ON=energized

Insulation Class: 600 Vac RMS

Wire Specifications: 

Lead Length: 14" (356 mm) min.

Gauge: UL1015  Coil: 18 AWG  Contacts: 16 AWG

Warranty: 5 year limited

Approvals: UL 508

product series features

Sleek enclosure
Nipple mount
Flexible wire
UL508 Listed

more information & related documents

Series Description

The Veris Victory 400 Series 10A DPDT pilot-duty enclosed relays combine industrial strength and ease of use. The nipple-mount enclosure makes installation easy. With no need for a dedicated field enclosure, they are the ideal retrofit devices. One coil input controls the state of two pilot-rated contacts for the simultaneous control of two devices or both poles of a single-phase circuit, e.g. motor loads. Field-selectable high- and low-voltage coil inputs provide on-site versatility.

Kele Description

ENC RELAY/DPST/24VAC-DC/208-277VAC/20A/HOA

Manufacturer

Veris
