V420 | Veris | Relays & Contactors

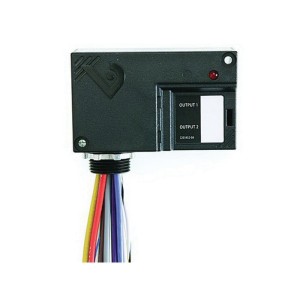

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay, DPDT
Brand:Veris
MPN:V420
SKU:V420
product specifications
LCD
DIN Rail,Wall
Contact Type
DPDT
Number of Relays
1
Contact Rating
20 A
Current Rating
20 A
Coil Voltage
24 VAC
Feature
LED
Mount
Surface
product series specifications
Operating Temp Range: -34 to 60 °C (-29 to 140 °F)
Operating Humidity Range: 10 to 90% RH non-condensing
Expected Relay Life: Electrical (@ rated current) 100,000 cycles: Mechanical (unpowered) 10,000,000 cycles
Relay Status: LED ON=energized
Insulation Class: 600 Vac RMS
Wire Specifications:
Lead Length: 14" (356 mm) min.
Gauge: UL1015 Coil: 18 AWG Contacts: 16 AWG
Warranty: 5 year limited
Approvals: UL 508
product series features
- Sleek enclosure
- Nipple mount
- Flexible wire
- UL508 Listed
more information & related documents
Series Description
The Veris Victory 400 Series 10A DPDT pilot-duty enclosed relays combine industrial strength and ease of use. The nipple-mount enclosure makes installation easy. With no need for a dedicated field enclosure, they are the ideal retrofit devices. One coil input controls the state of two pilot-rated contacts for the simultaneous control of two devices or both poles of a single-phase circuit, e.g. motor loads. Field-selectable high- and low-voltage coil inputs provide on-site versatility.
Kele Description
ENC RELAY/DPDT/24VAC-DC/208-277VAC/20A
Manufacturer
Veris
Related Documents
V300 V400 d0117 Data Sheet
