V220 | Veris | Relays & Contactors

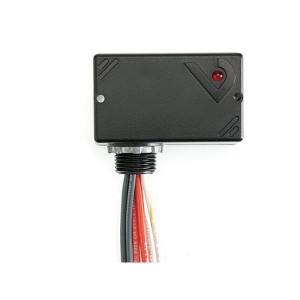

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay, SPDT
Brand:Veris
MPN:V220
SKU:V220
product specifications
LCD
DIN Rail
Number of Relays
1
Contact Rating
20 A
Current Rating
20 A
Contact Type
SPDT
Coil Voltage
24 VAC
Feature
LED
Mount
Surface
product series specifications
Operating Humidity Range: 10 to 90% RH non-condensing
Expected Relay Life: Electrical(@ rated current) 100,000 cycles: Mechanical(unpowered) 10,000,000 cycles
Relay Status: LED ON=energized
Insulation Class: 600 Vac RMS
Wire Specifications: Lead Length: 14" (356 mm) min.
Gauge: UL1015 Coil: 18 AWG Contacts: 16 AWG
Warranty: 5 years limited
Approvals: UL 508
product series features
- Sleek enclosure
- Nipple mount
- Flexible wire
- UL508 Listed
- Eliminate conduit
more information & related documents
Series Description
The Veris Victory 200 Series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple-mount enclosure. The Veris V100 andV200 Series provides quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high- and low- voltage coil inputs provide on-site versatility.
Kele Description
ENC RELAY/SPDT/24VAC-DC/208-277VAC/20A
Manufacturer
Veris
Related Documents
V100 V200 d0117 Data Sheet
