V203 | Veris | Relays & Contactors

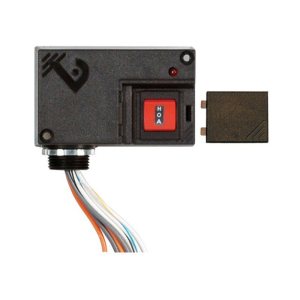

Relay, SPST N.O., coil: 10-30 VAC/DC and 208/277 VAC, digital monitor, LED indicator, 3/4" nipple mount with nut, 14" long tinned wires. UL.

Brand:Veris

MPN:V203

SKU:V203

List Price:

$-.--

Today's Price:

$-.--

product datasheet

product specifications

Type

Plastic Box

Contact Rating

10A

Contact Type

1-SPST

Coil Voltage

24 VAC,24 VDC

Mount

Panel

product series specifications

Operating Humidity Range: 10 to 90% RH non-condensing

Expected Relay Life: Electrical(@ rated current) 100,000 cycles: Mechanical(unpowered) 10,000,000 cycles

Relay Status: LED ON=energized

Insulation Class: 600 Vac RMS

Operating Temperature Range:

V100, V100DC, V200:  -34 to 60 °C (-29 to 140 °F)

V100D, V200D: -40 to 55 °C (-40 to 131 °F)

Wire Specifications: Lead Length: 14" (356 mm) min.

Gauge: UL1015 Coil: 18 AWG Contacts: 16 AWG

Warranty: 5 years limited

Approvals: UL 508

product series features

Sleek enclosure
Nipple mount
Flexible wire
UL508 Listed
Eliminate conduit

more information & related documents

Series Description

The Veris Victory 200 Series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple-mount enclosure. The Veris V100 andV200 Series provides quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high- and low- voltage coil inputs provide on-site versatility.

Kele Description

ENC RELAY/SPST-NO/10-30VAC-DC/208-277VAC/10A/DIG-H

Manufacturer

Veris
