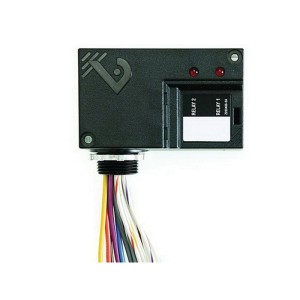

A rectangular black electronic control box with two red lights and labels for Relay 1 and Relay 2, attached to a bundle of multi-colored wires protruding from the bottom, shown against a white background.

V200D | Veris | Relays & Contactors

Victory 10 to 30 VAC/VDC, 208 to 277 VAC Enclosed Relay, Dual SPDT

Brand:Veris

MPN:V200D

SKU:V200D

List Price:

$94.00

Today's Price:

$48.88

product datasheet

installation instructions

Lead time of 14 days. Chat with Kele experts now

product specifications

LCD

DIN Rail,Wall

Contact Type

SPDT

Number of Relays

Contact Rating

10 A

Current Rating

10 A

Accessory

Gold Flash

Coil Voltage

12 VAC

Feature

LED

Mount

Surface

product series specifications

Operating Humidity Range: 10 to 90% RH non-condensing

Expected Relay Life: Electrical(@ rated current) 100,000 cycles: Mechanical(unpowered) 10,000,000 cycles

Relay Status: LED ON=energized

Insulation Class: 600 Vac RMS

Operating Temperature Range:

V100, V100DC, V200:  -34 to 60 °C (-29 to 140 °F)

V100D, V200D: -40 to 55 °C (-40 to 131 °F)

Wire Specifications: Lead Length: 14" (356 mm) min.

Gauge: UL1015 Coil: 18 AWG Contacts: 16 AWG

Warranty: 5 years limited

Approvals: UL 508

product series features

Sleek enclosure
Nipple mount
Flexible wire
UL508 Listed
Eliminate conduit

more information & related documents

Series Description

The Veris Victory 200 Series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple-mount enclosure. The Veris V100 andV200 Series provides quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high- and low- voltage coil inputs provide on-site versatility.

Kele Description

ENC RELAY/2XSPDT/10-30VAC-DC/208-277VAC/10A

Manufacturer

Veris
