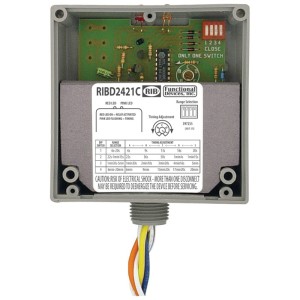

RIBD2421C | Functional Devices | Relays & Contactors

The Functional Devices RIB Relay In a Box Pilot Series controls most Building Automation Systems, BAS, HVAC, low-horsepower motor and lighting applications. The relays come mounted and pre-wired in a housing, saving the installer the time, trouble and expense of buying separate components (relay, socket, mounting rail, and enclosure) and assembling them on the job or at the shop. The RIB Pilot Series has a protruding 1/2 in or 3/4 in NPT nipple from which all wires exit (except T series). To install, remove a conduit knockout in the equipment, insert the wires and nipple through the hole, tighten the locknut, and connect the wires. The RIB Relay in a box pilot series (includes RIBU1C, RIBU2C, RIBH1C, RIBH2C, RIBH1S and more) has 10A relay contacts and is used to control light electrical loads, dirve power relays or contactors, or sense the voltage being fed to electrical loads. The RIBT Series- High/Low Voltage Separation Series is designed to provide physically separate entrances for connections to the relay input coil and output contacts. Relay contact wires exit the housing through a 1/2 in or 3/4 in NPT nipple. The cover of the RIBT Series is removable and, with star bushings or 1/2 in conduit, the coil drive wires can enter the housing through one of two convenient openings. The coil drive wires are secured to screw terminals within a separate wiring compartment in the RIBT. Most of the RIBs in the Power Series are also available in the T Series. Each relay is a proven performer in Building Automation Systems, BAS, applications.
