DP3AUX-1NO-1NC | Resideo | Relays & Contactors
AUXILARY SWITCH FOR DP30XXX5000'S CONTACTORS
Brand:Resideo
MPN:DP3AUX-1NO-1NC
SKU:DP3AUX-1NO-1NC
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accessory Type
Auxiliary Switch
Type
Accessory
Contact Type
3 Pole
Mount
Side
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features

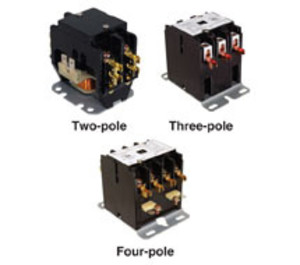

- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
AUXILARY SWITCH FOR DP30XXX5000'S CONTACTORS
Manufacturer
Resideo
