DP3030B5003 | Resideo | Relays & Contactors
POWER PRO CONTACTOR 3 POLE 30AMP-120V
Brand:Resideo
MPN:DP3030B5003
SKU:DP3030B5003
List Price:
$156.00
Today's Price:
$81.12
Log in for customized pricingproduct specifications
Contact Type
3 Pole
Contact Rating
30 A
Current Rating
30 A
Coil Voltage
120 VAC
Mount
Surface
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features

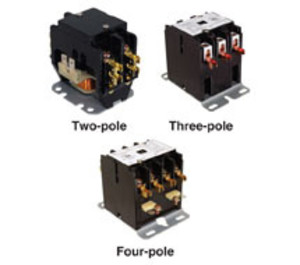

- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
POWER PRO CONTACTOR 3 POLE 30AMP-120V
Manufacturer
Resideo
