DP3030A5004 | Resideo | Relays & Contactors

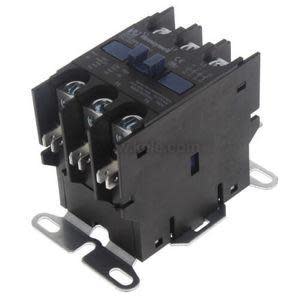

PowerPro Definite Purpose Contractor, 3 Pole, 24 VAC, 30A
Brand:Resideo
MPN:DP3030A5004
SKU:DP3030A5004
product specifications
Number of Poles
3
Contact Rating
30 A
Current Rating
30 A
Contact Type
3 Pole
Coil Voltage
24 VAC
Application
Electrical Loads,Air Conditioning,Refrigeration Compressor,Motors,Resistance Heaters
Mount
Foot
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features
- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
CONTACTOR - 3 POLE 30A 24V
Manufacturer
Resideo
