DP1025A5006/U | Resideo | Relays & Contactors

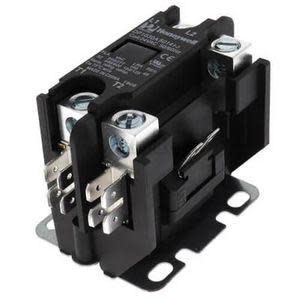

PowerPro Definite Purpose Contractor, 1 Pole, 24 VAC, 25A with Buss Bar
Brand:Resideo
MPN:DP1025A5006/U
SKU:DP1025A5006
List Price:
$68.61
Today's Price:
$35.68
Log in for customized pricingproduct specifications
Number of Poles
1
Contact Rating
25 A
Current Rating
25 A
Contact Type
1 Pole
Coil Voltage
24 VAC
Application
Electrical Loads,Air Conditioning,Refrigeration Compressor,Motors,Resistance Heaters
Mount
Foot
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features
- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
POWER PRO MODEL. 1 POLE WITH B
Manufacturer
Resideo
