DPC24A3B60 | Kele | Relays & Contactors

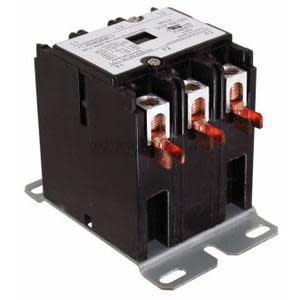

Definite Purpose Contactor, 3 Pole, 24 VAC, 75A
Brand:Kele
MPN:DPC24A3B60
SKU:DPC24A3B60
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Number of Poles
3
Contact Rating
75 A
Current Rating
60 A
Contact Type
3 Pole
Accessory
CN1C
Coil Voltage
24 VAC
Application
Electrical Loads,Air Conditioning,Refrigeration Compressor,Motors,Resistance Heaters
Mount
Foot
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features
- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
CONTACTOR, 3 POLE 60A, 24VAC
Manufacturer
Kele
