DPC01A4A30 | Kele | Relays & Contactors

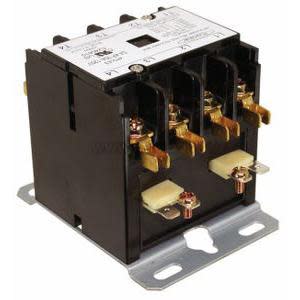

Definite Purpose Contactor, 4 Pole, 120 VAC, 40A
Brand:Kele
MPN:DPC01A4A30
SKU:DPC01A4A30
List Price:
$101.32
Today's Price:
$52.69
Log in for customized pricingproduct specifications
Number of Poles
4
Contact Type
4 Pole
Contact Rating
40 A
Current Rating
40 A
Coil Voltage
120 VAC
Feature
Auxiliary Switch
Application
Electrical Loads,Air Conditioning,Refrigeration Compressor,Motors,Resistance Heaters
Mount
Foot
product series specifications
Line Load Terminals: Box lug or dual 0.25" quick connects
Coil Terminals: Dual 0.25" quick connects
Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
Wire Size: 14-4 AWG
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: UL recognized, File #E246810, CE certified
Weight: 1.5 lbs (0.68 kg)
Warranty: 1 year
product series features
- Two, three, and four pole models
- Contact ratings from 30-60 FLA
- Optional auxiliary contacts on select models
more information & related documents
Series Description
The Hecheng Electrical DPC Series is an economical line of definite-purpose contactors designed to control electrical loads such as air conditioning, refrigeration compressor, motors, and resistance heaters.
Kele Description
CONTACTOR, 4 POLE 30 FLA, 40A RESISTIVE, 120VAC
Manufacturer
Kele
