T30A2-G | EE Controls | Relays & Contactors

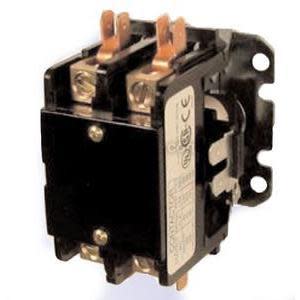

Definite Purpose Contactor, 2 Pole, 30A, 24 VAC, No Auxiliary Switch
Brand:EE Controls
MPN:T30A2-G
SKU:T30A2-G
List Price:
$88.00
Today's Price:
$45.76
Log in for customized pricingproduct specifications
Number of Poles
2
Contact Type
2 Pole
Contact Rating
30 A
Current Rating
30 A
Coil Voltage
24 VAC
Application
Electrical Loads,Air Conditioning,Refrigeration Compressor,Motors,Resistance Heaters
Mount
Foot
product series specifications
Electrical Life: 200,000 electrical operations
Mechanical Life: 2,000,000 mechanical operations
Operating Temperature: -40° to 149°F (-40° to 65°C)
Approvals: CE, CSA, UL Listed #E309604
Warranty: 1 year
product series features
- 1, 2, or 3 Pole styles
- FLA up to 90A
- Coil voltage up to 480V
more information & related documents
Series Description
The EEC T30, T40, T60 and T90 Series of definite purpose contactors can be used in air conditioning, compressors, refrigeration, heaters and HVAC applications. They are rated for 200,000 electrical operations and 2 million mechanical operations. The coils are rated 80 to 105% voltage, 65VA inrush and 7.5VA sealed. These contactors are available in 1, 2 or 3 pole configurations up to 100 Amps.
Kele Description
DP CONTACTOR 2 POLE 30FLA 24VAC COIL
Manufacturer
EE Controls
Related Documents
T30, T40, T60, T90 Data Sheet
