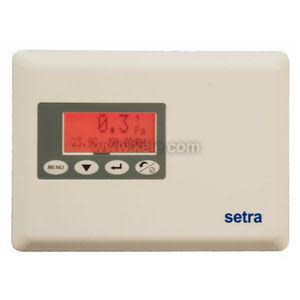

SRIM210CLB11WLC | Setra | Pressure Components
Room Pressure Monitor, ±1000 Pa, Bi-Directional, 4-20 mA, Wall Mount W/Logo, ±1.00%
Brand:Setra
MPN:SRIM210CLB11WLC
SKU:SRIM210CLB11WLC
List Price:
$2,246.35
Today's Price:
$1,168.10
Log in for customized pricingproduct specifications
Direction
Bi-Directional
Measurement
Pascals
Media Compatibility
Liquid,Gas
Range
±10,000 Pa
Type
Multi
Accuracy
1%
Output
4 - 20 mA
Display
LCD
Supply Voltage (Nominal)
24 VDC
Mount
Wall
product series specifications
Supply Voltage: 18 to 32 VDC @ 5 mA, 24 VAC ±10% @ 0.1 VA
Accuracy:
-(C or G): ±1% full scale
-H: ±0.5% full scale
-F: ±0.25% full scale
Resolution: 0.0001≥ WC
Signal Output: Field Select 0 to (5,10) VDC @ 5kΩ or 4-20 mA @ 510Ω (Loop powered)
Setpoint Adjust Local: Hi and Low alarm value set
Setpoint Remote Adjust: 4 buttons (Menu, DWN, Enter, ALM silence)
Control Type: Single room differential pressure monitor
Field Interface Devices (order Separately): RPS, SS room pressure probe (2 included)
Display/Audible:
Two line LCD
2 LEDs (Grn = PWR, RED = Alm)
0-4 Audible settings w/ silence switch
Sensor Type: Capacitive
Normal Measurement Range: ±0.05" to 5" WC (0.01 to 1.25 kPa)
Overpressure: (Burst) ±276" WC (68.8 kPa)
Max Operating Pressure: (Proof) ±276" WC (68.8 kPa)
Operating Temperature: 21° to 140°F (-6° to 60°C)
Operating Humidity: 5 to 95% RH Non-condensing
Wetted Parts: Stainless steel, glass, silicone, brass, steel
Media Compatibility: Inert dry air
Process Connection: Two-3/16" OD brass H/L, for 1/4" OD tubing
Wiring Terminations: 3 terminals
Mounting: Flush into a 3 gang box
Enclosure Rating: NEMA 1 (IP54), UL94V-0
Dimensions: 6.19"W x 4.44"H x 1.7"D, (15.7 x 11.3 x 4.3 cm)
Weight: 0.6 lb (0.28 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- Large 2-line LCD display
- Membrane keypad for easy configuration and menu navigation
- Upper/lower alarm limit setting
- Wall and duct mount versions
- Mounting thickness < 50mm
- Easy calibration without removing the wiring or plumbing
more information & related documents
Series Description
The Setra SRIM2 Series room pressure monitor is designed for critical care low differential pressure applications that require stringent pressure monitoring and alarming. True differential pressure is measured and displayed. The SRIM2 Series is a complete system that includes a convenient 2-Line Character LCD display with an intuitive interface for pressure, calibration, and alarm setup.
Kele Description
ROOM PRESSURE MONITOR, ++/-1.00%, ++/-1000 PA, 4-20 MA, NO COM, LCD
Manufacturer
Setra
Related Documents
SRIM2 Install Manual
