MRMSS | Setra | Pressure Components

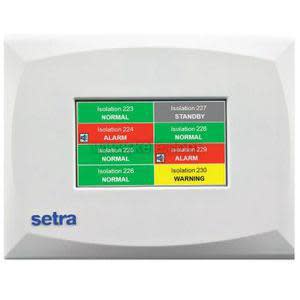

Multi-Room Monitoring Station, Up To 8 Rooms, Configurable Audible/Visual Alarms, IP-54 Flush Mount Design, with Setra Logo
Brand:Setra
MPN:MRMSS
SKU:MRMSS
List Price:
$5,890.56
Today's Price:
$3,063.09
Log in for customized pricingproduct specifications
Communication Protocol
BACnet
Type
Multi
Display
LCD
Supply Voltage (Nominal)
24 VAC
Mount
Wall
product series specifications
Supply Voltage: 18-32 VAC, 50-60HZ, 10VA
Signal Output (Volts,Current, Switch): Not Specified
Control Type: 1-8 Room annunciator
Communication (if any): BACnet MS/TP
Field Interface Devices (order Separately):
Setra SRCM: (Color Rm. Pressure Monitor)
Setra SRPM: (B&W Rm. Pressure Monitor)
Display/Audible (If any):
Dimmable color touchscreen 4.3", 480 x 272,
4 color status indicators (See photo)
0-4 Audible settings with silence switch
Sensor Type: None
Operating Temperature: 32° to 120°F (0° to 50°C)
Operating Humidity: 5 to 95% RH (Non-condensing)
Wiring Terminations: 6, Removable terminals (18-22 AWG)
Mounting: Flush w/3 gang double deep box
Enclosure Rating : NEMA 1, LEXAN 920/940, UL94V-0
Dimensions: 7.45"W x 5.84"H x 0.38"D, (18.9 x 14.8 x 0.97 cm)
Weight: 1.1 lb (0.51 kg)
Approvals : CE, CSA, RoHS
Warranty: 1 year
product series features
- Remotely monitor up to eight rooms
- Auto-discover setra room pressure/condition monitors
- Built-in audible and visual alarm
- Display room status and room condition
- Flush mount design
- Reduce total installation cost
- BACnet® MS/TP protocol
- High definition color (TFT) touchscreen display
more information & related documents
Series Description
The Setra Multi-Room Monitoring Station (MRMS) is a remote monitoring device to view the status of up to 8-Rooms equipped with other Setra room pressure/ condition monitors.
Kele Description
MULTIROOM MONITORING STATION WITH LOGO
Manufacturer
Setra
MRMS Data Sheet
